Cembre RHU520 Crimping Heads With Cembre B70M-P24 For Cable Crimping Up To 1200sqmm

Hydraulic Cable Crimping Pressheads

Cembre RHU520 - Hydraulic Presshead

Cembre B70M-P24 - Portable Electro Hydraulic Pump

Cembre Hydraulic Crimping Tools

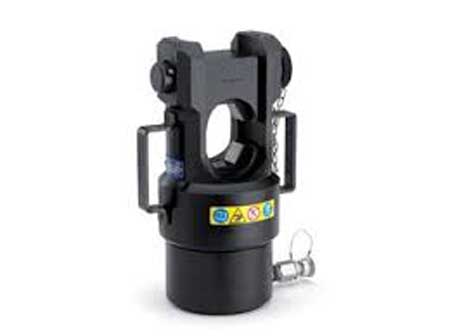

Cembre RH520 hydraulic cable crimping head features a quick automatic coupler for connection to a Cembre hydraulic pump, such as Cembre B70M-P24 portable electro-hydraulic pump. Cembre B70M-P24 electro-hydraulic pump operates at 24V dc by battery, developing 700 bar pressure - the portable pump features an integral socket for connection to an external 24V dc supply. Cembre B70M-P24 is supplied with a 3 metre hose complete with couplers to connect to the Cembre RHU520 crimping head.

Cembre RHU520 is typically used by cable jointers and electrical engineers to crimp cable lugs and cablesplices 400sqmm-1200sqmm conductors. Cembre AU520-130C adaptor enables the RHU520 crimp head to accept semi-circular slooted Cembre die sets common to most 130kN crimping tools. Use of the Cembre AU520-130C permits the Cembre RHU520 to enable crimping for 10sqmm-300sqmm.

Cembre RHU520 - Length 306mm, Width 200mm, Weight 18kgs

Cembre B70M-P24 Portable 24v Electro-Hydraulic Pump

Cembre RHU520 Hydraulic Crimp Head Manual

Cembre RHU520 Hydraulic Crimping Head Tool
