Roxtec C KFO Transit Frame

Roxtec C KFO Cable Transit Frame, a compact version of the KFO frame but 30 mm deep. It is a lightweight composite frame (PA) suitable for various kinds of enclosures, where it is important to keep weight down to a minimum.

The Roxtec C KFO frame is only available as a single opening frame, with or without flange. For use with CM components, and attached by bolting.

Please note - if wall thickness is 1,5 mm or less, the additional C KFO counter frame shall be used.

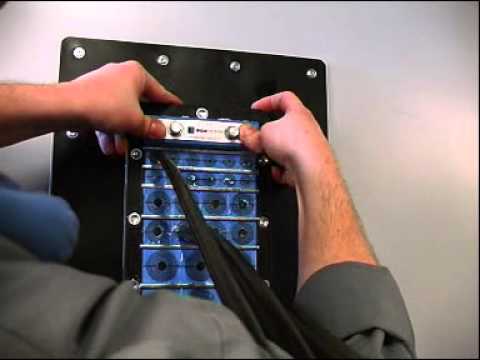

Pictured : Roxtec C KFO Cable Transit Frame

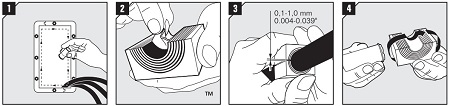

Pictured : Installation of Roxtec Cable Transit Frame C KFO Type

1. Make sure that all inside surfaces of the frame are free from dust or dirt. Lubricate the inside surfaces with Roxtec Lubricant, especially into the corners.

2. Adapt modules which are to hold cables or pipes by peeling off layers until you reach the gap seen in pic. 3

3. Achieve a 0.1-1.0 mm gap between the two halves when held against the cable/pipe.

4. Lubricate all modules for the frame thoroughly, both the inside and the outside surfaces

Roxtec C KFO Cable Transit Frame

Parts	For No openings	Packing Space (mm)	External Dimensions		Weight
			HxW (mm)	HxW (in)	(kg)	(lb)
C KFO 6x1	1	180 x 120	260 x 159	10.236 x 6.260	0.6	1.323
C KFO 6x1 with flange	1	180 x 120	420 x 319	16.535 x 12.559	1.2	2.646
C KFO Counter frame	1	180 x 120	262 x 161	10.315 x 6.338	0.4	0.882
