CW63 Aluminium Cable Gland Kit - Prysmian 422AL61 Prysmian CW63 422AL61 Aluminium Cable Glands

CW Cable Glands - Aluminium

Prysmian CW63 422AL61

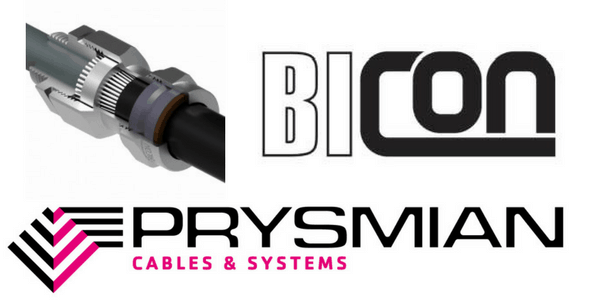

CW Aluminium Cable Glands for Indoor - Outdoor

Single Core BS5467 XLPE AWA 600/1000v Cables



Prysmian CW63 422AL61 Aluminium Cable Gland Kit is suitable for both indoor and outdoor cable termination of BS5467 single core XLPE insulated AWA (aluminium wire armoured cables) with cable diameters 51.3 to 65.3mm.

Prysmian CW63 422AL61 Aluminium Cable Gland kits feature M63 cable gland entry thread, BS6121 tested, complete with seperate cable gland armour locking ring for checking electrical continuity.

Cable gland kit achieves IP66 ingress protection rating with use of suitable sealing washer or thread sealant at cable gland interface.

CW63 422AL61 Aluminium Cable Gland Kit

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Material: Aluminium
• Cable Gland Size: CW63
• Quantity Per Kit: 1 Gland

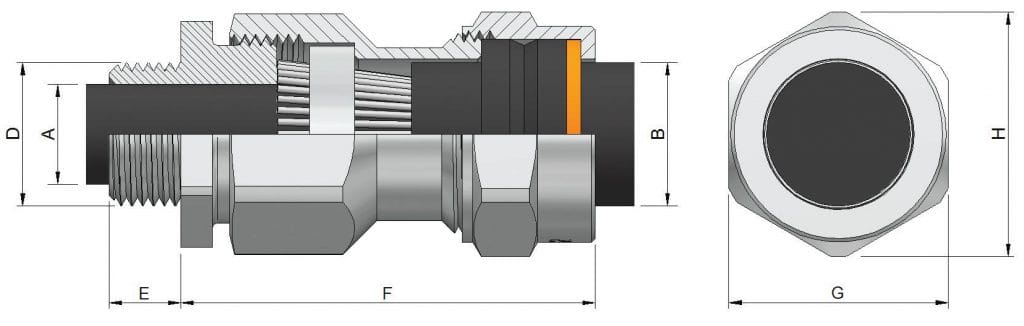

• Under Armour Max ∅ (A): 55.9mm
• Cable Diameter (B): 51.3-65.3mm
• Armour Wire ∅: 2.5mm
• Entry Thread (D) : M63 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 67mm
• Hexagon A/F (G): 80mm
• Hexagon A/C (H): 87.4mm
• Order Code: Prysmian Bicon KA422-61



Prysmian Cable Gland Kit, CW63 - 422AL61 - Gland Pack Contents

• Aluminium CW63 cable gland
• Aluminium CW63 cable gland lock nut
• Aluminium CW63 cable gland earth tag
• Cable gland shroud

LSF CW aluminium cable gland kits are available for zero halogen, low smoke and fume cable terminations.
