Prysmian Barrier Glands (424TA) for Unarmoured Cable

Explosion Proof Barrier Cable Glands

Zone 1 & Zone 2 Hazardous Areas (ATEX Certified)

Prysmian BICC BICON Cable Glands

Ex d Cable Glands

Prysmian BICON BARR-A Ex d llC - 424TA Series



Prysmian Brass Barrier Glands, Explosion Proof (EEx d) for Polymeric (EPR) Cables - Prysmian 424TA Unarmoured Explosion Proof Cable Glands

Prysmian 424TA Barrier glands are suitable for cable glanding and terminating unarmoured polymeric sheath cables in Zones 1, 2, 21 and 22 hazardous areas. The BARR-A Ex d llC 424TA series aids the control of migrating gasses and includes bicaseal putty.

Prysmian BICON Explosion Proof Cable Glands for Hazardous Areas: Certified ΙΙ 2GD, Ex e ΙΙ & Ex d ΙΙC under ATEX directive 94/9/EC

Hazardous Area Cable Glands - 424TA

Prysmian Explosion Proof Barrier Glands

Prysmian 424TA Barrier Glands Features & Benefits:

  • Brass indoor and outdoor cable gland for use in Zone 1 and Zone 2 hazardous areas
  • Suitable for circular unarmoured cables with extruded oversheath
  • Achieves IP66 seal onto cable and to enclosure with suitable sealing washer or thread sealant
  • Provides mechanical cable retention
  • Suitable for most climatic conditions - weatherproof and waterproof
  • Standard and Nickel plated versions available

Barrier Gland Applications for Hazardous Areas - Prysmian 424TA

  • Zones 0, 1 & 2 with Ex ia IIA, B & C equipment
  • Zones 1 & 2 with Ex ib IIA, B & C equipment
  • Zones 1 & 2 with Ex d IIA, B & C equipment with any volume
  • Zones 1 & 2 with Ex e II equipment
  • Zones 1 & 2 with Ex p II equipment
  • Zone 2 with Ex nA II equipment
  • Zone 2 with Ex nR II equipment
  • Zones 21 & 22 with Ext d A21

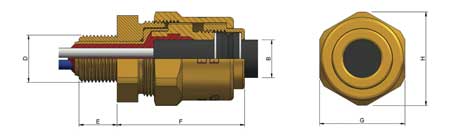

Prysmian 424TA Series Barrier Cable Gland Specifications
Gland Reference Cable Dimensions (mm) Gland Dimensions
Design Ref Size Metric Max dia.

Max No.

Overall Ø (B)

D

E

F

Hexagon
Min Max

A/F

G

A/C

H

Prysmian 424TA-53 20 11 30 8.9 15.7 M20 x 1.5 15 56 36 40
Prysmian 424TA-55 25 16 42 13 19.3 M25 x 1.5 15 59 42.4 48
Prysmian 424TA-56 32 22.1 60 17 25.4 M32 x 1.5 15 59 47.2 53.6
Prysmian 424TA-57 40 28.2 100 24.1 30 M40 x 1.5 15 63 56.4 61.5
Prysmian 424TA-59 50 37.1 200 29 41.9 M50 x 1.5 15 66 70.1 77.2
Prysmian 424TA-61 63 48.4 400 40.9 52.8 M63 x 1.5 15 69 80 87.4
Prysmian 424TA-63 75 58.6 400 49.8 59.9 M75 x 1.5 15 80 98.8 109.2
Prysmian 424TA-64 85 65.8 400 58.9 73.9 M85 x 2 20 83 106.2 116.8
