Explosion Proof Glands - Prysmian BICC 424TA64 - 58.9-73.9mm

Prysmian Cable Glands - Hazardous Area, Explosion Proof - Barrier Glands

Prysmian BICON 424TA Explosion Proof Barrier Cable Glands

Zone 1 & Zone 2 Hazardous Areas (ATEX Certified)

Ex d Cable Glands

Prysmian BICON BARR-A Ex d llC - 424TA64



The Prysmian BARR 424TA64 is a barrier type cable gland for unarmoured cables in Zone 1 and Zone 2 hazardous areas which aids the control of mingrating gasses. The BICON 424TA64 BARR-A Exd IIC cable gland provides the highest level of hazardous protection.

Prysmian 424TA64 gland kit suits 58.9mm - 73.9mm diameter cables. Nickel plated cable glands available (424TA-64V). NPT thread lengths comply with UL2225 requirements.

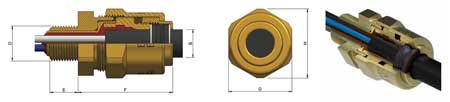

Prysmian BICC 424TA64 Barrier Gland

Prysmian 424TA Series Barrier Cable Gland Specifications
Gland Reference Cable Dimensions (mm) Gland Dimensions
Design Ref Size Metric Max dia.

Max No.

Overall Ø (B)

D

E

F

Hexagon
Min Max

A/F

G

A/C

H

Prysmian 424TA-64 85 65.8 400 58.9 73.9 M85 x 2 20 83 106.2 116.8

Adobe Prysmian 424TA64 Explosion Proof Barrier Glands for Zone 1 Zone 2 Hazardous Areas
