Nexans Euromold 484TB



Nexans Euromold 484TB tee connector terminates high voltage polymeric cables into switchgear,Nexans Euromold transformers or motors with Interface C 400 series type C HV bushings.

Nexans Euromold 484TB straight connector meets the requirements of CENELEC HD 629.1.

Euromold 484TB is a screened separable tee connector specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12) kV
  • 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV
  • 12.7/22 (24) kV
  • 18/30 (36) kV
  • 19/33 (36) kV
  • 20.8/36 (42) kV

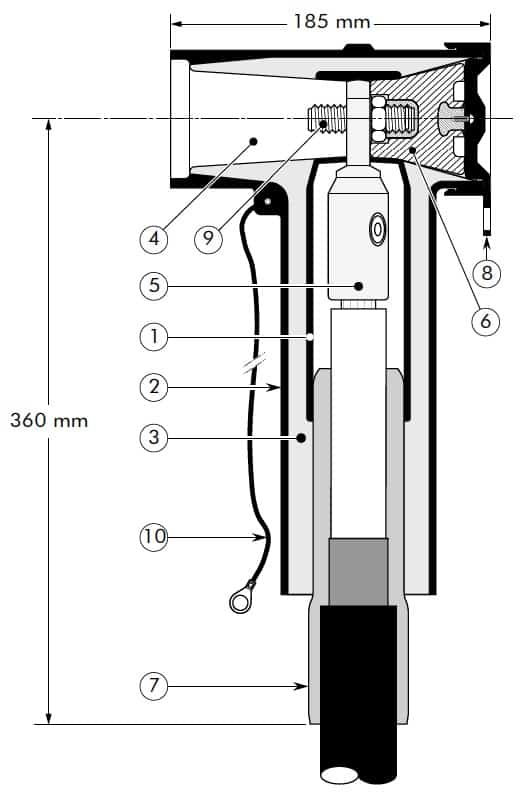

Design & Specification - Nexans Euromold 484TB Tee Connector 12kV - 42kV 630Amps Interface C



Nexans Euromold 484TB Tee Connector 12kV - 42kV 630Amps Interface C

Separable tee connector comprising:

  1. Conductive EPDM insert.
  2. Conductive EPDM jacket.
  3. Insulating EPDM layer moulded between the insert and the jacket.
  4. Type C - interface as described by CENELEC EN 50180 and 50181.
  5. Conductor connector.
  6. Basic insulating plug (with VD point).
  7. Cable reducer.
  8. Conductive rubber cap.
  9. Stud+nut+washer.
  10. Earthing lead.

Nexans Euromold Separable Connectors 484TB - Tee Connector

Nexans Euromold Separable Connector  Voltage Um (kV) Current lr (A) Conductor Size Min (sq mm) Conductor Size Max (sq mm)
484TB/G 12kV 1250A 50 630
K484TB/G 24kV 1250A 35 630
M484TB/G 36kV 1250A 35 630
P484TB/G 42kV 1250A 35 630
