Nexans Euromold 484TB/G Tee Connectors 12kV 630Amps 50-630sqmm

Nexans Euromold 484TB/G Tee Connectors 12kV 630Amps 50-630sqmm

Nexans Euromold 484TB Connectors

Tee Connector

12kV 630 Amps



  • Product Category: Separable Connectors
  • Termination Type: Tee Connector
  • Bushing Interface Type: Interface C Connector
  • Location: Switchgear | Transformer | MotorNexans Euromold
  • Voltage: MV HV Medium & High Voltage
  • Voltage Um Class: 11kV 33kV 42kV
  • Suit Cable Type: Polymeric
  • Number Of Cable Cores: Single Core or 3 Core
  • Cable Conductor Sizes: 35-630sqmm
  • Current Rating Connector: 630 Amps/1250Amps

Nexans Euromold 484TB/G Tee Connector 12kV 630Amps Interface C

Nexans Euromold 484TB/G Tee Connector 12kV 630Amps Interface C

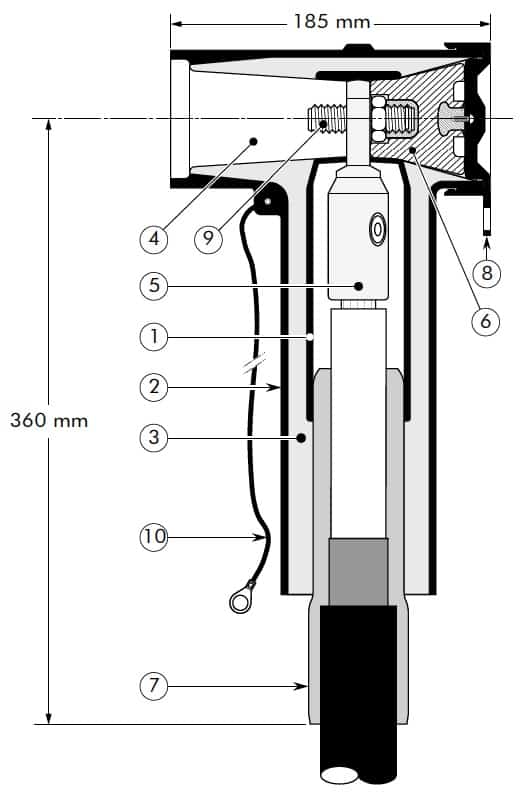

Nexans Euromold 484TB/G Tee Connectors - Design

  1. Conductive EPDM insert
  2. Conductive EPDM jacket
  3. Insulating EPDM layer moulded between insert and jacket
  4. Type C 484A Bushing Interface as CENELEC EN50180 & EN50181
  5. Conductor connector
  6. Basic insulating plug (with VD point)
  7. Cable reducer
  8. Conductive rubber cap
  9. Clamping screw
  10. Earthing lead

Nexans Euromold separable cable connectors connect, joint and terminate medium and high voltage (MV-HV) power cables to electrical equipment including switchgear, transformers and motors up to 33kV.

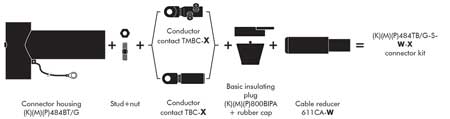

Nexans Euromold 484TB/G Tee Connectors 12kV 630Amps 50-630sqmm - Kit Contents

Nexans Euromold 484TB/G Tee Connectors 12kV 630Amps 50-630sqmm - Kit Contents
