Nexans Euromold P484TB/G Tee Connectors 42kV 630Amps 35-630sqmm

Nexans Euromold P484TB/G Tee Connectors 42kV 630Amps 35-630sqmm

Nexans Euromold 484TB Connectors

Tee Connector

42kV 630 Amps

  • Product Category: Separable Connectors
  • Termination Type: Tee Connector
  • Bushing Interface Type: Interface C Connector
  • Location: Switchgear | Transformer | Motor
  • Voltage: MV HV Medium & High VoltageNexans Euromold
  • Voltage Um Class: 11kV 33kV 42kV
  • Suit Cable Type: Polymeric
  • Number Of Cable Cores: Single Core or 3 Core
  • Cable Conductor Sizes: 35-630sqmm
  • Current Rating Connector: 630 Amps/1250Amps



Nexans Euromold P484TB/G Tee Connector 42kV 630Amps Interface C

Nexans Euromold P484TB/G Tee Connector 42kV 630Amps Interface C

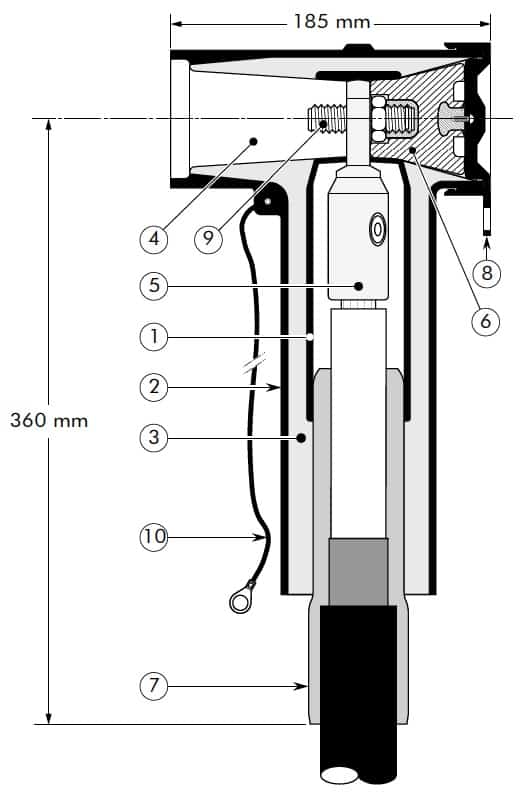

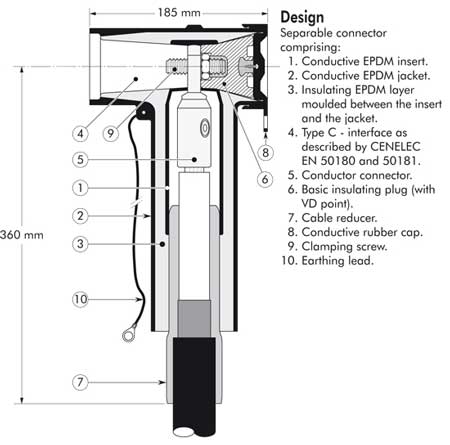

Nexans Euromold P484TB/G Tee Connectors - Design

  1. Conductive EPDM insert
  2. Conductive EPDM jacket
  3. Insulating EPDM layer moulded between insert and jacket
  4. Type C 484A Bushing Interface as CENELEC EN50180 & EN50181
  5. Conductor connector
  6. Basic insulating plug (with VD point)
  7. Cable reducer
  8. Conductive rubber cap
  9. Clamping screw
  10. Earthing lead

Nexans Euromold separable cable connectors connect, joint and terminate medium and high voltage (MV-HV) power cables to electrical equipment including switchgear, transformers and motors up to 33kV.

Nexans Euromold P484TB/G Tee Connector 42kV 630Amps Interface C

Nexans Euromold P484TB/G Connectors

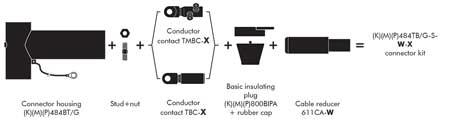

Nexans Euromold P484TB/G Tee Connectors 36kV 630Amps 35-630sqmm - Kit Contents

Nexans Euromold P484TB/G Tee Connectors 42kV 630Amps 35-630sqmm - Kit Contents

Adobe

Nexans Euromold P484TBG Tee Connectors 42kV 630Amps 35-630sqmm
