Lucy Lighting - Trojan Isolators

Lucy ZodionStreet Lighting Cut-outs & Isolators

Lucy Zodion

Trojan Modular System Isolators

The new slimline Lucy Lighting Trojan Isolator range has been redeveloped with a brand new innovative style which has been designed to satisfy all street lighting double pole isolation applications.

Lucy Zodion Trojan street lighting isolators are available in 2, 3, and 4 way versions providing double pole isolation - typically supplied with an isolator and fuse configurable to customer specification with DIN rail mounting modules.



  • Lucy Lighting Trojan Mini isolators provide a two-way modular street lighting isolator system incorporating a switch, fuse or MCB.

Easy to install, the slimline Lucy Lighting Trojan mini double pole isolator is preferred by street lighting engineers throughout the UK.

Pictured: Lucy Isolators - Trojan Mini Street Lighting Isolators - 2 Way System

Lucy Isolators - Trojan Mini Street Lighting Isolators - 2 Way System





  • Lucy Lighting Trojan Midi isolators provide a three-way modular street lighting isolator system incorporating a switch, fuse or MCB.

The versatile Lucy Lighting Trojan isolator offers 3 modular variations, for example a two lantern supply or one lantern and a sign.

Pictured: Lucy Isolators - Trojan Midi Street Lighting Isolators - 3 Way System

Lucy Isolators - Trojan Midi Street Lighting Isolators - 3 Way System





  • Lucy Lighting Trojan Maxi isolators provide a four-way modular street lighting isolator system with total flexibility for up to 4 DIN modules and sophisticated control such as time clocks.

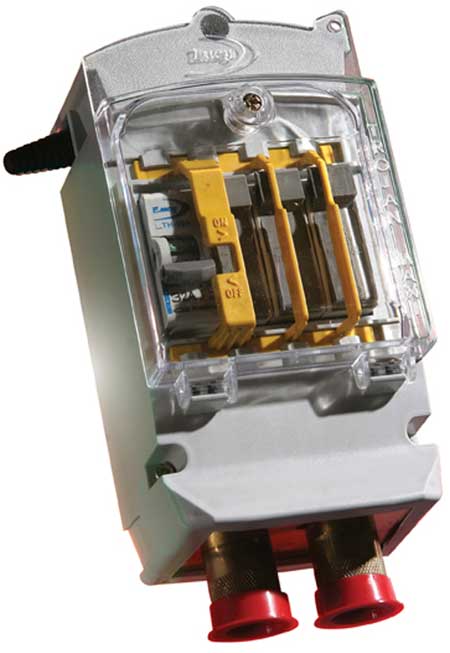

Pictured: Lucy Isolators - Trojan Maxi Street Lighting Isolators - 4 Way System

Lucy Isolators - Trojan Maxi Street Lighting Isolators - 4 Way System



Lucy Zodion: Switched On Street Lighting Equipment

Lucy Zodion are leading manufacturers of street lighting equipment, supplying a full range of low voltage fused street lighting isolators (Trojan), cut-outs (Titan), photo-electrical control units (PECU’s), electronic control gear and feeder pillars in cast iron, stainless and galvanised steel.

Lucy Fortress feeder pillars are available as retractable power supply pillars for on-street delivery of low voltage temporary power supply. T&D provide a pre-wired design service for Lucy Fortress feeder pillars.

Brass Cable Gland Plates - Lucy Lighting Trojan Street Lighting Isolators are available with brass or insulated cable gland plates in one, two or three cable entry formats.

Cable gland plates are able to receive 20mm, 25mm or 32mm brass tubes for the termination of low voltage SWA street lighting cables. Internal earth leads are supplied with all brass gland plates.

T&D together with Lucy can offer a range of Lucy Street Lighting Cut Outs – Titan Single & Double Pole Cut Outs.

Lucy Zodion Street Lighting

Adobe Lucy Lighting Trojan Mini Isolator Double Pole

Adobe Lucy Lighting Trojan Midi Isolator Double Pole

Adobe Lucy Lighting Trojan Maxi Isolator Double Pole

Adobe Lucy Lighting Trojan Isolators - Extension Troughs

Adobe Lucy Lighting - Street Lighting General Catalogue

Adobe Lucy Lighting - Trojan Festive Lighting Street Lighting Isolators
