Seaward PR33D High Voltage HV Phasing Unit 33kV

Seaward PR High Voltage HV Phasing Units 1kV-33kV

Seaward PR33D

Phase Comparison Equipment

Seaward PR33D High Voltage Phasing Unit is a digital HV potential indicator and phasing stick which can be used to indicate the presence of voltage, make voltage measurements and provide a means of phase comparison at the point of paralleling two circuits.

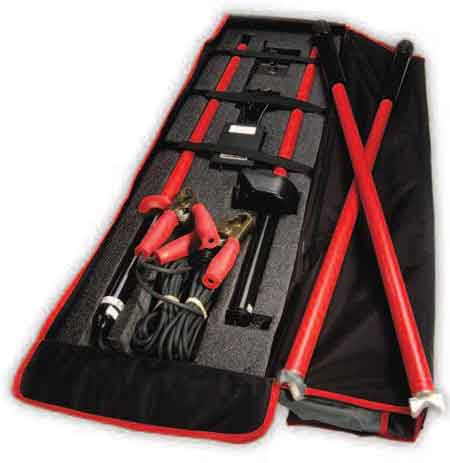

Pictured: Seaward PR15D High Voltage HV Phasing Unit 15kV

The Seaward PR33D does this without the interposition of voltage transformers or secondary wiring circuits.

The Seaward PR33D high voltage phasing unit is suitable for use on earthed neutral systems up to 33kV.

The PR33D high voltage phasing unit also has LCD display which is powered by an integral rechargeable battery and is supplied complete with battery charger and PH3 proving unit in a carrying case.

The Seaward PR33D HV unit also conforms to safety standards with features including high-grade PVC tubing and incorporates totally encapsulated resistor chains.

Seaward PR33D High Voltage Phasing Units Specifications:

• PR33D Voltage: 33kV max
• Resolution: 100V
• Seaward PR33D Diameter: 2.5cm
• Length: 60cm (Digital Leg) 67cm (Phasing Leg)
• Part No: 109A913

Seaward PR33D High Voltage HV Phasing Unit 33kV
