Seaward PR15D

Phase Comparison Equipment

The Seaward PR15D High Voltage HV Phasing Unit 15kV is a digital HV potential indicator and phasing stick which can be used to indicate the presence of voltage, make voltage measurements and provide a means of phase comparison at the point of paralleling two circuits.

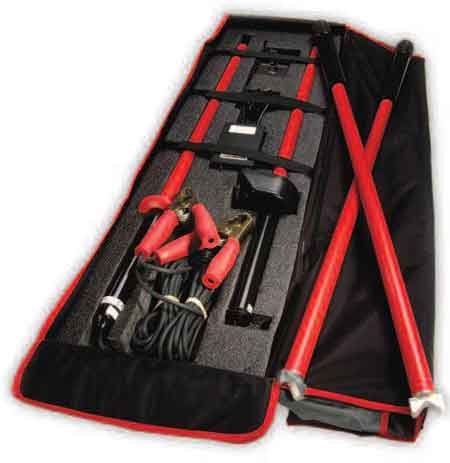

Pictured: Seaward PR15D High Voltage HV Phasing Unit 15kV

The Seaward PR15D phasing unit does this without the interposition of voltage transformers or secondary wiring circuits.

The Seaward PR15D High Voltage HV Phasing Unit is suitable for use on earthed neutral systems up to 15kV.

The PR15D high voltage phasing unit also has LCD display which is powered by an integral rechargeable battery and is supplied complete with battery charger and PH3 proving unit in a carrying case.

The Seaward PR15D HV unit also features high-grade PVC tubing and incorporates totally encapsulated resistor chains.

Seaward PR15D High Voltage HV Phasing Unit 15kV Specifications:

• PR15D Voltage: 15kV max
• Resolution: 10V
• Seaward PR15D Diameter: 2.5cm
• Length: 60cm (Digital Leg)  67cm (Phasing Leg)
• Part No: 109A912
