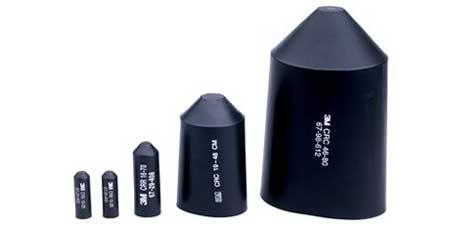

3M SKE8/20 Heat Shrink Cable End Caps, Cable Dia's 8-16mm

 Heat Shrink Cable Caps

8-16mm Cable Diameters

3M SKE8/20 Heat Shrink Cable Caps

3M SKE8/20

Heat Shrink Cable Caps

8-16mm Cable Diameters

3M SKE8/20 Heat Shrink Cable End Caps, Cable Dia's 8-16mm

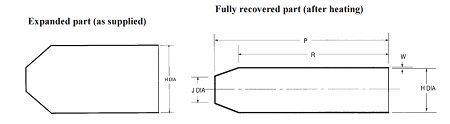

3M SKE8/20 Heat Shrink Cable End Caps, Cable Dia's 8-16mm - Diagram

3M SKE8/20 Heat Shrink Cable End Caps - Technical Specification

Part Number	H Dia			J Dia	P +10% R	R +10% R	HW +20% R	For Cable Diameters
	Max X		Max R	Max R
SKE 8/20	0.79		0.30	0.26	2.18	1.97	0.09	0.31 - 0.43
	(20.07))		(7.62)	(6.60))	(55.37)	(50.04)	(2.29)	(8-16)



*Notes: • All dimensions in both inches and metric, all angles in degrees • Color: Black • Dimensions in table: X = Expanded (Minimum) R = Recovered (Maximum) • 3M CAGE Code: 20999

Cable Sealing End Caps - Cold Shrink & Heat Shrink 3M

Heat Shrink Cable End Caps 3M SKE8/20 - 8-16mm Cables
