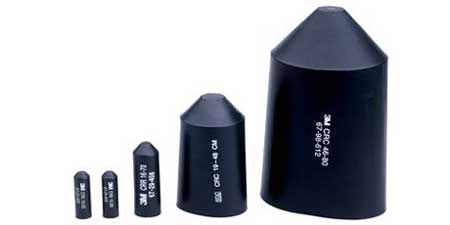

3M SKE4/10 Heat Shrink Cable End Caps, Cable Dia's 4-8mm

 Heat Shrink Cable Caps

4-8mm Cable Diameters

3M SKE4/10 Heat Shrink Cable Caps

3M SKE4/10

Heat Shrink Cable Caps

4-8mm Cable Diameters

3M SKE4/10 Heat Shrink Cable End Caps, Cable Dia's 4-8mm

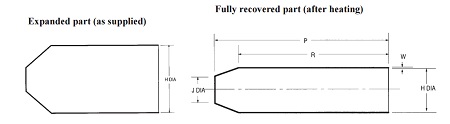

3M SKE4/10 Heat Shrink Cable End Caps, Cable Dia's 4-8mm - Diagram

3M SKE4/10 Heat Shrink Cable End Caps - Technical Specification

Part Number	H Dia			J Dia	P +10% R	R +10% R	HW +20% R	For Cable Diameters
	Max X		Max R	Max R
SKE 4/10	0.39		0.16	0.12	1.32	1.18	0.08	0.16 - 0.31
	(9.91)		(4.06)	(3.05)	(33.53)	(29.97)	(2.03)	(4-8)



*Notes: • All dimensions in both inches and metric, all angles in degrees • Color: Black • Dimensions in table: X = Expanded (Minimum) R = Recovered (Maximum) • 3M CAGE Code: 20999



Cable Sealing End Caps - Cold Shrink & Heat Shrink 3M

Heat Shrink Cable End Caps 3M SKE4/10 - 4-8mm Cables
