ABB TPU4 Indoor Current Transformers (CT) MV Medium Voltage 3.6kV 7.2kV 11kV 12kV

ABB Power ProductsABB TPU MV Medium Voltage Current Transformers

ABB TPU4 Indoor Current Transformers (CT's)

 3.6kV 7.2kV 11kV 12kV

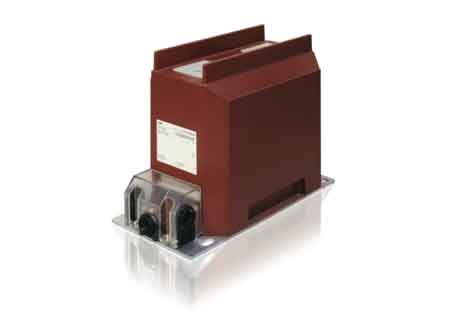

ABB TPU4 indoor current transformers (CT's) for MV medium voltage power applications are cast in epoxy resin and designed for insulation voltages up to 11kV-12kV. The 3.3kV-3.6kV and 6.6kV-7.2kV indoor medium voltage current transformers have the same dimensions as the 11kV-12kV range of indoor transformers.

ABB TPU Indoor Supporting Current Transformers

ABB TPU4 Indoor Current Transformers for MV Medium Voltage Power
Highest Voltage for Transformer 3.6kV to 12kV, including 11kV
Power Frequency Test Voltage 1 Min 10kV to 42kV
Lightning Impulse Test Voltage 40kV to 95kV
Rated Primary Current 10-3200Amps
Rated Short-Time Thermal Current 2 up to 100kA 1s
Reconnectable (Primary 400-800Amps) Primary or Secondary
Rated Primary Voltages 3.6kV, 7.2kV, 11kV, 12kV
Rated Primary Currents 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A, 150A, 200A, 300A, 400A, 500A, 600A, 750A, 1000A, 1250A, 1500A, 2000A, 2500A, 3000A and 3200A
Transformer Standards IEC, VDDE, ANSI, BS, GOST and CSN
Indoor CT MV Transformers Protection IP40



ABB TPU4 MV medium voltage current transformers are designed as single-turn or multi-turn versions, with one transformer ratio or with double ratio having the possibility to be reconnectable on the primary or secondary medium voltage MV power supply side.

The number of secondary windings (from 1 to 6 - maximum 12 secondary terminals - 2 rows), depends on the combination of the technical parameters (such as accuracy class, burden, short-circuit current, overcurrent factor) and the actual current transformer size.
