Prysmian Nylon Hook Cleats - BICON



Prysmian Cables and Components have launched a new heavy-duty nylon hook cable cleat. The new hook cleat is part of the BICON range and offers a safe and effective means of supporting cable.

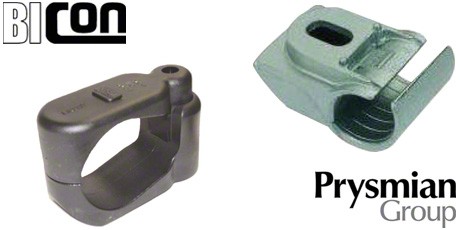

Pictured: Prysmian Nylon Hook Cleats - BICON

Prysmian Nylon Hook Cleats - BICON


The new hook cleat is part of the BICON range and offers a safe and effective means of supporting cable, either directly to a wall, or in conjunction with cable tray, ladder or Unistrut. An important aspect of cable installation is to maximise the number of cable runs in a given space.


The heavy-duty hook cleats efficient design offers a unique cable diameter range take (25-80mm over 6 sizes), which minimises the space required for the cable cleat on the tray. In addition the cable cleats can be double stacked to further maximise this space.


Material strength is also a key consideration when choosing a cable cleat. After testing a variety of materials, Prysmian chose to manufacture the new cleat from glass-filled nylon, which offers a superior safe working load. Featuring a two-part design with a single bolt fixing, the cable cleats can be installed in a temporary open position.

Once the cable has been dressed correctly the cleat is closed and secured with a single bolt. Other characteristics of Prysmians new cable cleat include an operating temperature range of –20°C to +90°C and UV and weather resistance, making it ideal for a wide range of applications.

Prysmian Nylon Hook Cleats

  • Cleats standard and LSOH Cables - 25 to 80 mm diameter
  • For normal industrial use indoor and outdoor
  • Fits most cable ladder and cable tray systems
  • Operating temperature -20°C to +90°C
  • Cable cleats can be double stacked on one fixing
  • Not designed to secure cables in long vertical routes
  • All cable cleat sizes secured with 10mm fixings
Prysmian Nylon Hook Cleats - BICON
Cable Selection Cleat Details
Design Num Cable Dia Dim (mm) Weight SWL
Al LSOH A (mm) C D E Al

LSOH

Al LSOH
Max Min Max Min g g kgf kgf
384AA01 384LSF01 25 35 36 46 76 40 18 63 52 80 48
384AA02 384LSF02 34 44 44 54 85 40 18 74 61 80 48
384AA03 384LSF03 43 53 56.5 66.5 96 40 18 105 88 98 59
384AA04 384LSF04 52 62 65.5 75.5 106 40 18 129 108 103 62
384AA05 384LSF05 61 71 78 88 119 44 20 175 146 165 99
384AA06 384LSF06 70 80 87 97 129 44 20 221 185 171 103
