Prysmian BICON Nylon Hook Cable Cleat 384AA04 52-62mm Cable OD's

Prysmian Nylon Hook Cleats - BICON

Prysmian BICON LSF Hook Cable Cleat 384AA04





Prysmian BICON LSF Hook Cable Cleat 384AA04 - Low Smoke & Fume

Suits 52-62mm Cable OD's

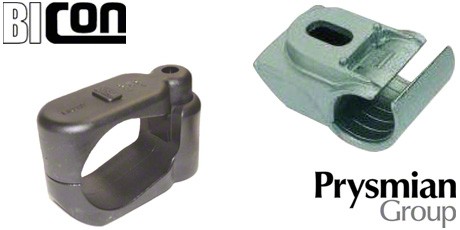

Pictured: Prysmian BICON LSF Hook Cable Cleat 384AA04 52-62mm Cable OD's



Prysmian BICON LSF Hook Cable Cleat 384AA04 52-62mm Cable OD's - Product Specification

Cable Selection

Cleat Details

Design Num

Cable Dia

Dim (mm)

Weight

SWL (FOS 2)

Al

LSOH

A (mm)

B

C

D

E

Al

LSOH

Al

LSOH

Max

Min

Max

Min

g

g

kgf

kgf

384AA04

384LSF04

52

62

65.5

75.5

106

40

18

129

108

103

62

*Al stands for Aluminium, SWL = Safe Working Load FOS 2 = Values include a Factor of Safety of 2

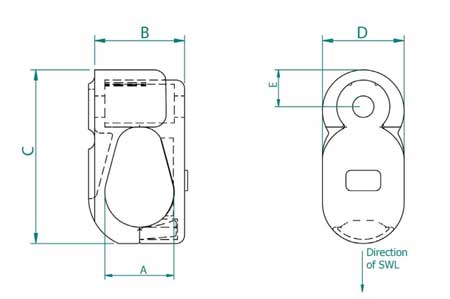

Pictured:Prysmian BICON LSF Hook Cable Cleat 384AA04 52-62mm Cable OD's - Diagram

Prysmian BICON Nylon Hook Cable Cleat 384AA04 52-62mm Cable OD
