Pfisterer HV- Connex Surge Arresters - 10kA Type 72.5 - 145 kV

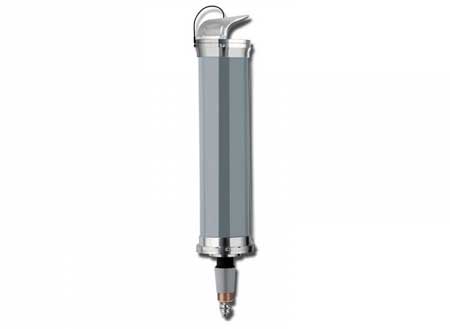

Pfisterer HV-CONNEX dry-type pluggable surge arrester for 72.5 kV voltage level.

Due to the HV-Connex surge arrester insulation and field control made from solid silicone, no liquids or insulating gases relevant for the environment are present. Therefore the installation and operation of the high voltage surge arresters is particularly easy because it does not require regulations for pressure vessels to be followed and gas monitoring is not necessary. Pfisterer HV-Connex surge arresters are easy to remove or replace and save on space.

The Pfisterer Connex system allows for high levels of flexibility in design, commissioning and use of the transformers and GIS.

Pfisterer HV- Connex Surge Arresters

Pfisterer HV- Connex Surge Arrester Advantages

  • Solid insulation and field control made from silicone
  • No costly oil and gas work
  • Contact-safe design of transformer and GIS
  • Easy connection and pretestability of Transformer and GIS with utilisation of the full CONNEX system
Pfisterer High Voltage HV-Connex Surge Arrester Technical Data
Nominal Discharge Current

10 kA, 8/20 μs

Rated Short Circuit Current

40 kA, 0.2s

High Current Impulse

100 kA, 4/10 μs

Long Duration Current Impulse

420 A, 2000 μs

Rated Frequency

50-60Hz

Line Discharge Class

2

Energy Absorption Capacity

4.28 kJ/kV Ur

Weight

approx. 40 kg
