Pfisterer MV-Connex Surge Arresters Up To 52kV



Pfisterer Connex surge arresters protect switchgear and transformers equipped with plug-in type high voltage bushings, 6.6kV up to 52kV . The high voltage surge arresters are connected to the switchgear transformer and prevent the entry of excessively high surges. Surge arresters are particularly effective in limiting surges caused by reflected travelling waves and switching overvoltages.

The Standard for surge arresters IEC 60099-4 is applicable to these devices. The dimensions of the plug-in termination system comply with EN 50180/EN 50181.

Pfisterer Surge Arresters

Pfisterer MV-Connex Surge Arrester Features

  • Metal-enclosed
  • Fully-insulated
  • Touchproof
  • Free from arcing
  • High short-circuit protection
  • Maintenance-free
  • For outdoor and offshore use
  • Protection class IP 66

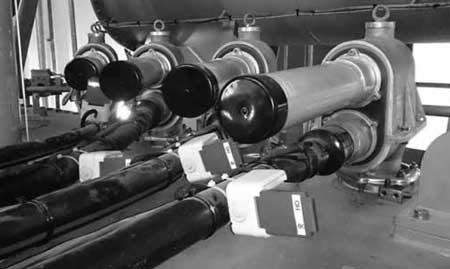

Pfisterer MV Connex Surge Arresters



HV Surge Arresters - Pfisterer Connex - Specification

Pfisterer Connex high voltage surge arresters are to DIN VDE 0675 and IEC 99-4 and the dimensions of the plug-in termination system comply with EN 50180/EN50181.

Surge Arrester Design: the live part consists of metal oxide resistors without spark gap. The resistors possess a high thermal stability ensured by suitable dimensioning - the live parts are enclosed by a silicone rubber jacket that provides insulation against the metal housing. The corrosion resistant aluminium housing renders the surge arrester intrinsically safe ensuring optimum high voltage electrical safety for personnel. The metal housing provides a hermetic sealing of the live parts against environmental influences including moisture and pollution. The HV plug-in surge arrester is designed to fit the inside cone plug-in termination system and is available in size 1, 2 and 3 for high voltage protection up to 52kV. The cable termination is attached via flange to the HV electrical equipment - surge arresters are complete with corrosion-resistant fracture membrane that opens the arrester in case of an internal fault and allows for a defined axial pressure relief on the bottom of the surge arrester without any damage to the plug-in high voltage electrical system.

T&D UK can provide competitive quotations for the complete range of Pfisterer Connex High Voltage Surge Arresters, Bushings and Inner Cone Plug-in Cable Terminations.

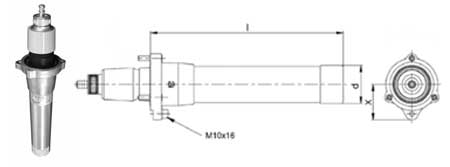

Pfisterer Connex Surge Arrester Specifications
Product No. Size Rated Voltage Max. Contin-uous Rating Max. Residual Voltage

Length

l

Thick-ness

d

Dimen-sion

x

Weight



8/20 μs/5 kA



8/20 μs/10 kA

Pfisterer 827513075 1 7.5kV 6kV 20kV 22kV 350mm 66mm 66mm 3.5kg
Pfisterer 827513090 1 9kV 7kV 24kV 26kV 350mm 66mm 66mm 3.5kg
Pfisterer 827513125 1 12.5kV 10kV 34kV 37kV 350mm 66mm 66mm 3.5kg
Pfisterer 827513150 1 15kV 12kV 40kV 44kV 350mm 66mm 66mm 3.5kg
Pfisterer 827513175 1 17.5kV 14kV 47kV 51kV 350mm 66mm 66mm 3.5kg
Pfisterer 827513190 1 19kV 15kV 51kV 56kV 350mm 66mm 66mm 3.5kg
Pfisterer 827513215 1 21.5kV 17kV 58kV 63kV 350mm 66mm 66mm 3.5kg
Pfisterer 827513240 1 24kV 19kV 64kV 70kV 350mm 66mm 66mm 3.5kg
Pfisterer 827513300 1 30kV 24kV 80kV 87kV 350mm 66mm 66mm 3.5kg
Pfisterer 827513360 1 36kV 29kV 96kV 105kV 350mm 66mm 66mm 3.5kg
Pfisterer 827523075 2 7.5kV 6kV 20kV 22kV 350mm 66mm 66mm 3.7kg
Pfisterer 827523090 2 9kV 7kV 24kV 26kV 350mm 66mm 66mm 3.7kg​
Pfisterer 827523125 2 12.5kV 10kV 34kV 37kV 350mm 66mm 66mm 3.7kg​
Pfisterer 827523150 2 15kV 12kV 40kV 44kV 350mm 66mm 66mm 3.7kg​
Pfisterer 827523175 2 17.5kV 14kV 47kV 51kV 350mm 66mm 66mm 3.7kg​
Pfisterer 827523190 2 19kV 15kV 51kV 56kV 350mm 66mm 66mm 3.7kg​
Pfisterer 827523215 2 21.5kV 17kV 58kV 63kV 350mm 66mm 66mm 3.7kg​
Pfisterer 827523240 2 24kV 19kV 64kV 70kV 350mm 66mm 66mm 3.7kg​
Pfisterer 827523300 2 30kV 24kV 80kV 87kV 350mm 66mm 66mm 3.7kg​
Pfisterer 827523360 2 36kV 29kV 96kV 105kV 350mm 66mm 66mm 3.7kg​
Pfisterer 827527450 2 45kV 36kV 120kV 131kV 500mm 98mm 66mm 4.4kg
Pfisterer 827527510 2 51kV 40.8kV 134kV 147kV 500mm 98mm 66mm 4.4kg
Pfisterer 827527525 2 52.5kV 42kV 139kV 152kV 500mm 98mm 66mm 4.4kg
Pfisterer 827537075 3 7.5kV 6kV 20kV 22kV 490mm 98mm 80mm 5.2kg
Pfisterer 827537091 3 9kV 7kV 24kV 26kV 490mm 98mm 80mm 5.2kg
Pfisterer 827537125​ 3 12.5kV 10kV 34kV 37kV 490mm 98mm 80mm 5.2kg
Pfisterer 827537150 3 15kV 12kV 40kV 44kV 490mm 98mm 80mm 5.2kg
Pfisterer 827537175 3 17.5kV 14kV 47kV 51kV 490mm 98mm 80mm 5.2kg
Pfisterer 827537190 3 19kV 15kV 51kV 56kV 490mm 98mm 80mm 5.2kg
Pfisterer 827537215 3 21.5kV 17kV 58kV 63kV 490mm 98mm 80mm 5.2kg
Pfisterer 827537240 3 24kV 19kV 64kV 70kV 490mm 98mm 80mm 5.2kg
Pfisterer 827537300 3 30kV 24kV 80kV 87kV 490mm 98mm 80mm 5.2kg
Pfisterer 827537360 3 36kV 29kV 96kV 105kV 490mm 98mm 80mm 5.2kg
Pfisterer 827539450 3 45kV 36kV 120kV 131kV 490mm 98mm 80mm 5.2kg
Pfisterer 827539510 3 51kV 40.8kV 134kV 147kV 490mm 98mm 80mm 5.2kg
Pfisterer 827539525 3 52.5kV 42kV 139kV 152kV 490mm 98mm 80mm 5.2kg
