Phase Comparators IEC 61481 - 3.3kV to 33kV Voltages



Pfisterer range of phase comparators are used for medium-high voltage installations and are used to check the phase coincidence in three-phase networks.

Single-pole phase comparators are of the same construction as the Pfisterer range of voltage detectors which ensures a high level of both safety and reliability. Phase comparison takes place using a single-pole phase comparator (SPPC) and contact being made between both conductors one after the other.

Pfisterer Single-pole Phase Comparator Technical Description

• Available for nominal voltages and nominal voltage ranges from 3 to 3 kV
• Can be used with a rated frequency of 50 Hz
• For reliable phase comparison, a rated frequency of 49.9 - 50.1 Hz is required, with a maximum frequency drift of 10 mHz/s
• Self-test feature
• Automatic switch-off device
• Green, red and yellow LED display
• Removable contact electrode top piece, as forked electrode

1. Pfisterer Single-pole Phase Comparator SPPC

The Pfisterer SPPC single-pole phase comparator is designed to meet international standard IEC 61481

Pfisterer Single-pole Phase Comparator SPPC Specifications

Part No.	Nominal Voltage	Total Length	Insertion Depth	Diameter Of Insulating Element
Pfisterer 364788001	6kV - 12kV	1440mm	575mm	24mm
Pfisterer 364825001	6kV - 12kV	1440mm	575mm	24mm
Pfisterer 364825002	6kV - 12kV	1640mm	775mm	24mm
Pfisterer 364788004	10kV	1040mm	349mm	24mm
Pfisterer 364788002	12kV - 24kV	1640mm	775mm	24mm
Pfisterer 364825003	12kV - 24kV	1640mm	775mm	24mm
Pfisterer 364788003	24kV - 36kV	1640mm	775mm	24mm
Pfisterer 364825004	24kV - 36kV	1640mm	775mm	24mm

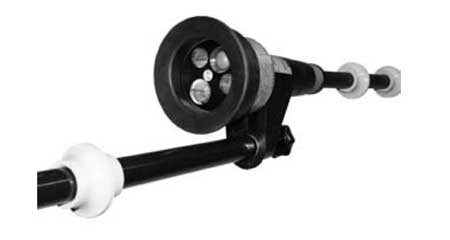

2. Pfisterer Switchable Single-pole Phase Comparator SPPC

The Pfisterer SPCC single-pole phase comparator can be switched between three nominal voltage ranges using the voltage range switching ring, allowing a larger system range to be covered with the same interference field resistance.

Pfisterer Switchable Single-pole Phase Comparator SPPC Specifications

Part No.	Nominal Voltage Level 1	Nominal Voltage Level 2	Nominal Voltage Level 3	Total Length	Insertion Depth	Diameter Of Insulating Element
Pfisterer 364750001	6kV - 12kV	12kV - 24kV	24kV - 36kV	1640mm	775mm	24mm
Pfisterer 364830001	6kV - 12kV	12kV - 24kV	24kV - 36kV	1640mm	775mm	24mm
