Pfisterer Connex Inner Cone Plugs Size 3S, 52kV, 1250A 120-630sqmm

Pfisterer MV-Connex Inner Cone Plugs Cable Terminations

High Voltage Cable Terminations

Pfisterer MV-Connex Separable Connectors Size 3-S

Rated up to 52kV, 1250 Amps



Pfisterer Connex Inner Cone Plugs & Cable Terminations for High Voltage Gas Insulated Switchgear GIS (SF6) 33kV

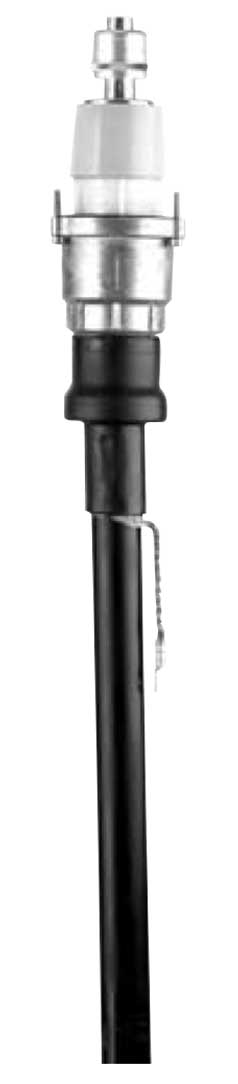

Pfisterer size 3S inner cone plug separable connectors are suitable for terminating high voltage single core cables with copper wire screens. Pfisterer HV cable plugs are suitable for indoor and outdoor cable terminations with or without voltage taps - offshore and 3 core version Pfisterer cable plugs are available.

Suitable for 120sqmm, 150sqmm, 185sqmm, 240sqmm, 300sqmm, 400sqmm, 500sqmm and 630sqmm cable cross-section conductors, 52kV.

Pfisterer Size 3S MV-Connex Separable Connector Features

• For DIN VDE cables
• For RM-conductor (stranded circular) of aluminium or copper
• For single core cable with copper wire shield without armouring
• With sealing system (bell flange seal and shrink tubing)
• For indoor and outdoor applications
• Not soil-resistant and not offshore-proof
• Offshore version on request
• Packaging unit: set with three separable connectors
• 3-core version on request
• Rotatable Flange



Pfisterer Size 3S MV-Connex Separable Connector Specifications

Product No.  (w/ voltage tap)	Product No. (w/o voltage tap)	Max Oper-ating Voltage	For Cable Cross Section	For Dia. Over Con-ductor	For Diameter Over XPLE Insulation Ø
Pfisterer 850350120	-	52kV	120mm²	11.5mm - 13.7mm	32mm - 36mm
Pfisterer 850350150	-	52kV	150mm²	13.5mm - 15.7mm	36mm - 39.5mm
Pfisterer 850350185	-	52kV	185mm²	15mm - 17.2mm	36mm - 39.5mm
Pfisterer 850350240	-	52kV	240mm²	17.5mm - 19.7mm	38mm - 41mm
Pfisterer 850350300	-	52kV	300mm²	19.5mm - 21.7mm	38mm - 41mm
Pfisterer 850350400	-	52kV	400mm²	22.6mm - 24.8mm	40mm - 43mm
Pfisterer 850350500	-	52kV	500mm²	25.4mm - 27.6mm	43.5mm - 46mm
-	Pfisterer 870350630	52kV	630mm²	28.9mm - 31.1mm	47.5mm - 50mm



Pfisterer CONNEX components enable onshore and offshore LV-HV cable jointing, terminating and connecting of GIS Switchgear, Transformers, RMU (Ring Main Units), Capacitors, Transducers, Motors & Cable Sealing End Boxes – also surge arresters, busbar couplings, pluggable substation connectors and Sicon mechanical shearbolt cable lugs and splices for 11kV/33kV switchgear connection of MV-HV power cables.

Size 3S Connectors – Pfisterer MV CONNEX Medium Voltage Cable Plugs
