Pfisterer IXOSIL High Voltage One-piece Slip-on Cable Joints - 72.5 kV to 300 kV

Pfisterer Connex Inner Cone PlugsPfisterer Ixosil High Voltage Slip-on Cable Joints

Ixosil One-piece MSA Slip-on Cable Joints

Extra High Voltage Cable Joints



Pfisterer one-piece MSA slip-on joint is available for voltages from 72.5 kV to 300 kV. The design of the one-piece Ixosil cable joint is compact in design making installation easy and efficient.  Each size of Ixosil silicone body covers a wide range of cable insulation diameters.

Pfisterer Ixosil One-piece MSA Slip-on Cable Joint Features:

  • Materials: Joint body - Silicone rubber
  • Conductor connection: Compressed or screwed

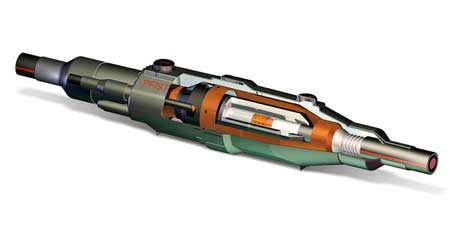

Pfisterer Ixosil MSA Slip-on Cable Joint - One-piece

Pfisterer Ixosil One-piece Slip-on Cable Joint Specifications

Max. Oper-ating Voltage

Standards

Rated Voltage

Rated Lightning    Impulse Withstand  Voltage (BIL)

 Partial Discharge Measure-ment

Conductor Cross-Section Area

Diameter Across Cable Insulation

72.5kV

IEC60840

60kV - 69kV

325kV

<5

150mm² - 2000mm²

37mm - 87mm

123kV

IEC60840

110kV - 115kV

 550kV

<5

240mm² - 2500mm²

46mm - 122mm

145kV

IEC60840

 132kV - 138kV 650kV

<5

 240mm² - 2500mm²

46mm - 122mm

170kV

IEC60840

150kV - 161kV

 750kV

<5

 240mm² - 2500mm²

52mm - 122mm

245kV

IEC62067

220kV - 230kV

1050kV

<5

 240mm² - 2500mm²

69mm - 122mm

300kV

IEC62067

275kV - 287kV

1050kV

<5

 240mm² - 2500mm²

72mm - 122mm
