Pfisterer Connex High Voltage Busbar Connectors 24kV - 42kV

Pfisterer Connex Pfisterer Connex Inner Cone Plugs

Pfisterer MV-Connex Busbar Connectors

Pfisterer Connex High Voltage Busbar Connectors 24kV - 42kV



Pfisterer Connex high voltage busbar connectors facilitate the modular construction and upgrade of SF6 gas insulated switchgear without the need to open the gas compartment during maintenance - 24kV to 42kV high voltage Connex busbar connectors are available.

​Pfisterer MV-Connex Busbar Connectors

Pfisterer FLINK Busbar Coupling System

Pfisterer Flink busbar is to connect (coupling) the bus-bar of SF6-insulated switchgears.

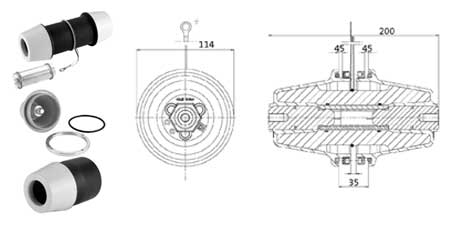

Pfisterer FLINK Busbar Coupling System

Pfisterer FLINK Busbar Coupling System Specifications
Product No. Product Type Max. Operating Voltage Nominal Current Weight
Pfisterer 819001024 Coupling Plug 24kV 630A 0.8kg
Pfisterer 839001024 Coupling Plug 24kV 630A 2.4kg
Pfisterer 819002002 Socket Including Sealing & Securing Ring 24kV 630A 0.6kg
Pfisterer 839002002 Socket Including Sealing & Securing Ring 24kV 630A 1.9kg
Pfisterer 819003001 Dummy Plug 24kV 630A 0.4kg
Pfisterer 839003001 Dummy Plug 24kV 630A 1.2kg

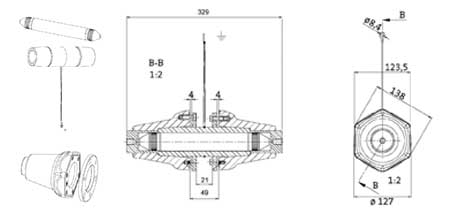

Pfisterer Busbar Coupling System - Size 2 Compatible

Application only with Pfisterer Connex-socket size 2 with voltage tap which must always be earthed.

Pfisterer Connex Busbar Coupling System Size 2 Compatible

Pfisterer FLINK Busbar Coupling System Specifications
Product No. Product Type Size Max. Operating Voltage Nominal Current Weight
Pfisterer 839004004 Coupling Plug incl Ground Wire 2 42kV 800A 4.3kg
Pfisterer 839005001 Connex Socket with Voltage Tap 827 106 412 incl Fastening Flange 566 432 001, Seal 021 937 087, Screw 023 476 002, Grounding Spring 612 927 033 2 42kV 800A 6.4kg
Pfisterer 839004006 Busbar Coupling Plug incl Ground Wire 2 42kV 800A 10kg
Pfisterer 839005002 Connex Socket with Voltage Tap 827 106 412 incl Fastening Flange 566 432 001, Seal 021 937 087, Screw 023 476 002, Grounding Spring 612 927 033 2 42kV 800A 6.4kg
