Pfisterer Operating Poles



There is a wide range of operating poles suitable for different LV HV applications. Operating poles are hand-held devices for the operations and testing of live components with nominal voltages of 11kV, 33kV, 66kV and up to 110kV.



Pfisterer Operating Pole Types:

  1. Pfisterer Insulating Poles
  2. Pfisterer Telescopic Insulating Poles
  3. Pfisterer Switching Poles



1. Pfisterer Insulating Poles

Technical Description

  • Receiving head with roller locking device
  • Suitable for indoor and outdoor installations, but not when there is precipitation
  • Red ring
  • Hand guard
  • Insulating poles made of fibre-glass reinforced polyester tube, colour yellow

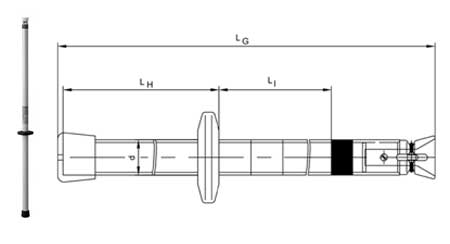

Pfisterer Operating Poles - Insulating Poles

Pfisterer Insulating Operating Poles Specification
Product No. Nominal Voltage Total Length Length Of Insulating Element Length Of Handle Diameter Of Insulating Element
Pfisterer 363810810 30kV 1038mm 525mm 450mm 33mm
Pfisterer 363810811 30kV 1538mm 525mm 605mm 33mm
Pfisterer 363810812 30kV 2038mm 525mm 705mm 33mm
Pfisterer 363810816 110kV 2038mm 1300mm 685mm 33mm
Pfisterer 363815818 110kV 3038mm 1300mm 800mm 43mm





2. Pfisterer Telescopic Insulating Poles

Technical Description:

  • Continuous telescoping adjustment
  • Receiving head with roller locking device
  • Suitable for indoor and outdoor installations, but not when there is precipitation
  • Red ring
  • Hand guard
  • Insulating poles made of fibre-glass reinforced polyester tube, colour yellow

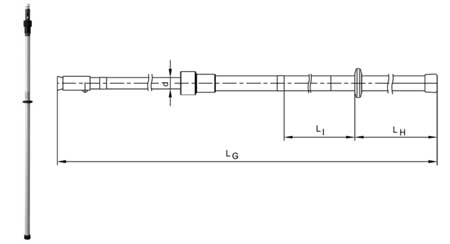

Pfisterer Telescopic Insulating Poles

Pfisterer Insulating Operating Poles Specification
Product No. Nominal Voltage Total Length Length Of Insulating Element Length Of Handle Transporting Length Diameter Of Insulating Element
Pfisterer 362808808 30kV 3200mm 525mm 915mm 1965mm 33mm



3. Pfisterer Switching Poles

Technical description:

  • Suitable for indoor and outdoor installations
  • Plastic actuating bolt and hand guard
  • End cap made of non-slip rubber
  • Switching pole made of glass-fibre reinforced polyester tube, colour yellow

These Pfisterer switching poles are designed to Standard DIN VDE 081 Part 1 and 2.

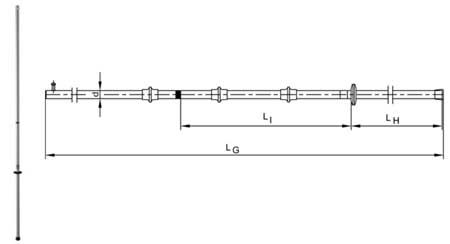

Pfisterer Switching Operating Poles

Pfisterer Insulating Operating Poles Specification
Product No. Nominal Voltage Total Length Length Of Insulating Element Length Of Handle Diameter Of Insulating Element
Pfisterer 364035004 30kV 1008mm 525mm 400mm 33mm
Pfisterer 364827006 30kV 1008mm 525mm 400mm 33mm
Pfisterer 364035005 30kV 1508mm 525mm 530mm 33mm
Pfisterer 364827001 30kV 1508mm 525mm 470mm 33mm
Pfisterer 364035035 30kV 2008mm 525mm 635mm 33mm
Pfisterer 364827002 30kV 2008mm 525mm 470mm 33mm
Pfisterer 364035036 30kV 2508mm 525mm 750mm 33mm
Pfisterer 364035037 30kV 3008mm 525mm 750mm 33mm
Pfisterer 364827003 60kV 2508mm 900mm 850mm 33mm
Pfisterer 364035042 110kV 2508mm 1300mm 635mm 33mm
Pfisterer 364035043 110kV 2508mm 1300mm 750mm 33mm
Pfisterer 364827004 110kV 3008mm 1300mm 950mm 33mm
Pfisterer 364035008 110kV 3508mm 1300mm 750mm 33mm
Pfisterer 364827007 110kV 4008mm 1300mm 1400mm 33mm
Pfisterer 364827008 110kV 5008mm 1300mm 1400mm 33mm
