Ripley Utility Tool WS 51A - Adjustable Transmission Cable Semi-con Removal Tool

Ripley Tools

Overhead High Voltage Cable Preparation Tools

Ripley WS 51A

Adjustable Transmission Cable Semi-con Shield Removal

Ripley WS 51A tranmission cable semi-con shield removal is used when splicing, jointing and terminating both HV and LV overhead power, transmission and distribution cables.

Ripley WS 51A adjustable semi-con shield removal is for use with solid dielectric transmission cables and is primarily for cable manufacturers to use in factories where there is a lot of different sized cables.

The adjustable tranmission cable semi-con shield removal has a clamp that locks over the cable with two sets of removable jaws that are interchangeable.

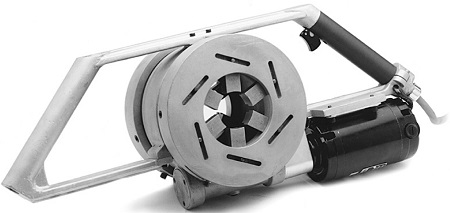

Pictured: Ripley Utility Tool WS 51A Adjustable Transmission Cable Semi-con Shield Removal

Ripley WS 51A Adjustable Transmission Cable Semi-con Shield Removal Specifications:

• Removable Jaws - Jaw set A – 1.815 to 3.065 in (46.10 to 77.85 mm) cable O.D. Jaw set B – 2.875 to 4.125 in (73.03 to 104.78 mm) cable O.D
• Removes semi-con insulation at a rate of 25 inches (635 mm) per minute
• 115 VAC or 230 VAC operation
• Length: 27 in (686 mm)
• Height: 10 in (254 mm)
• Weight: 37 lbs (16.8 Kg)
• WS 51A 115 VAC Part No.: 22100
• WS 51A 230 VAC Part No.: 22140
• Replacement blade: CB 40X-5 (Part No.: 22102)
• Made in the U.S.A
