Gel Joints DSG Canusa CGEL 2000

DSG-CanusaGel Filled Cable Joints

DSG-Canusa

CGEL 2000

DSG Canusa CGEL 2000 gel joint is suitable for 30 degree branch connections on 0.6/1kV cables.

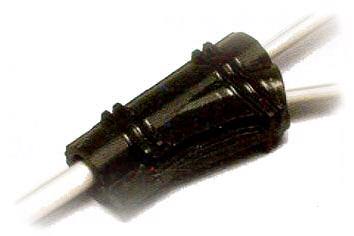

Pictured: Gel Joints DSG Canusa CGEL 2000

Gel Joints DSG Canusa CGEL 2000

Gel Joints DSG Canusa CGEL 2000 - Product Range
Part Ref Main Cable CSA Branch Cable CSA Dimensions
A B C D
CGEL 2000

1 x 2.5-25mm²

1 x 1.5-16mm²

 75mm 30mm 40mm 21mm
CGEL 2001

1 x 6-95mm²

2 x 1.5-16mm²

3 x 2.5-16mm²

4 x 2.5-10mm²

1 x 1.5-70mm²

2 x 1.5-10mm²

3 x 1.5-10mm²

4 x 1.5-6mm²

 125mm 36mm 56mm 35mm
CGEL 2002

1 x 50-150mm²

2 x 1.5-25mm²

3 x 4-25mm²

4 x 4-16mm²

1 x 1.5-70mm²

2 x 1.5-10mm²

3 x 1.5-10mm²

4 x 1.5-6mm²

 185mm 47mm 75mm 43mm

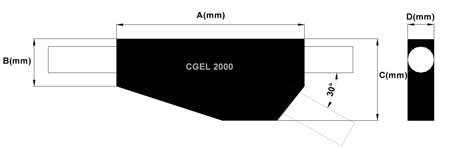

Pictured: Gel Joints DSG Canusa CGEL 2000 - Dimensions

Gel Joints DSG Canusa CGEL 2000 Dimensions

Adobe Gel Joints DSG Canusa CGEL2000
