Gel Filled Cable Joints & Cable Jointing Kits

DSG Canusa CGEL gel filled cable joints provide reliable straight and branch connection joints for power, control and communication cables.

Tough outer case cable joint with cross linked polymer gel filling meets class 2 of C.E.I. 64-8 and ANSI C119.90C operating temperature.

Gel joints are flame retarded cable joints to IEC332-1 and resist repeated flexing and torsion.

DSG Canusa CGEL Gel Cable Joints CGEL1000 are suitable for straight or multiple branch connections on 0.6/1kV extruded cables.

Pictured: Gel Joints DSG Canusa CGEL 1000

Gel Joints DSG Canusa CGEL 1000

Gel Joints DSG Canusa CGEL 1000 - Product Range
Part Ref Main Cable CSA Branch Cable CSA Dimensions
A B D
CGEL 1000

1 x 2.5-50mm²

2 x 2.5-6mm²

1 x 1.5-10mm²

2 x 1.5mm²

95mm 43mm 28mm
CGEL 1001

1 x 2.5-50mm²

2 x 1.5-16mm²

3 x 1.5-10mm²

4 x 1.5-10mm²

1 x 1.5-35mm²

2 x 1.5-6mm²

3 x 1.5-6mm²

4 x 1.5-4mm²

150mm 56mm 28mm
CGEL 1002

1 x 50-185mm²

2 x 10-35mm²

3 x 6-35mm²

4 x 6-35mm²

1 x 16-185mm²

2 x 1.5-35mm²

3 x 1.5-35mm²

4 x 1.5-16mm²

220mm 85mm 46mm



DSG Canusa CGEL Gel Cable Joints CGEL2000 are suitable for 30 degree branch connections on 0.6/1kV extruded cables.

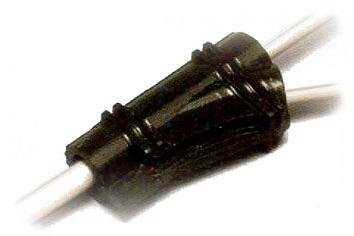

Pictured: Gel Joints DSG Canusa CGEL 2000

Gel Joints DSG Canusa CGEL 2000

Gel Joints DSG Canusa CGEL 2000 - Product Range
Part Ref Main Cable CSA Branch Cable CSA Dimensions
A B C D
CGEL 2000

1 x 2.5-25mm²

1 x 1.5-16mm²

75mm 30mm 40mm 21mm
CGEL 2001

1 x 6-95mm²

2 x 1.5-16mm²

3 x 2.5-16mm²

4 x 2.5-10mm²

1 x 1.5-70mm²

2 x 1.5-10mm²

3 x 1.5-10mm²

4 x 1.5-6mm²

125mm 36mm 56mm 35mm
CGEL 2002

1 x 50-150mm²

2 x 1.5-25mm²

3 x 4-25mm²

4 x 4-16mm²

1 x 1.5-70mm²

2 x 1.5-10mm²

3 x 1.5-10mm²

4 x 1.5-6mm²

185mm 47mm 75mm 43mm
