A2 LSF Brass Cable Glands - Prysmian BICC BICON

Prysmian Cable Glands

A2 Cable Glands - LSF

BICC BICON

Prysmian 423LSF







Low Smoke Fume, Zero Halogen Cable Glands







Prysmian A2 LSF brass cable glands are used to terminate or gland all types of unarmoured cables (stuffing glands) in both indoor and outdoor applications with IP66 rating.

Prysmian A2 LSF brass cable gland kits include gland, brass locknut and LSF shroud. Prysmian LSF cable glands comply with LU Standard 1-085 for installation in all London Underground sub-surface locations.

Prysmian BICC BICON cable glands are tested to BS6121 : Pt : 1989 - LSF cable glands for weatherpoof and waterproof low smoke and fume cable terminations.

A2 LSF Brass Cable Glands - Technical Specification

Prysmian Bicon Reference (Standard)	Prysmian Bicon Reference (Nickel Plated)	Size	Cable Dimensions (mm)		A2 Cable Gland Dimensions (mm)
			Cable Diameter Ø (B) mm)		Entry Thread (D)	Thread Length (E)	Length (F)	Hexagon
			Min	Max				A/F (G)	A/C (H)
423LSF-71	423LSF-71V	20SS	3.5	8.5	M20 x 1.5	10	20	22	24.9
423LSF-52	423LSF-52V	20S	8.0	11.5	M20 x 1.5	10	22	22	24.9
423LSF-53	423LSF-53V	20	11.0	13.5	M20 x 1.5	10	22	24	27
423LSF-55	423LSF-55V	25	13.0	19.5	M25 ×1.5	10	25	30.5	34
423LSF-56	423LSF-56V	32	19.0	25.5	M32 × 1.5	10	25	42.4	48
423LSF-57	423LSF-57V	40	25.0	32.0	M40 × 1.5	15	33	47.2	53.6
423LSF-58	423LSF-58V	50S	31.5	37.0	M50 ×1 .5	15	30	55	60
423LSF-59	423LSF-59V	50	36.5	43.0	M50 × 1.5	15	30	56.4	61.5
423LSF-60	423LSF-60V	63S	42.5	50.0	M63 × 1.5	15	34	70.1	77.2
423LSF-61	423LSF-61V	63	49.5	55.0	M63 × 1.5	15	32	75	83
423LSF-62	423LSF-62V	75S	54.5	61.0	M75 × 1.5	15	32	80	87.4
423LSF-63	423LSF-63V	75	60.5	67.0	M75 ×1 .5	15	40	85	95

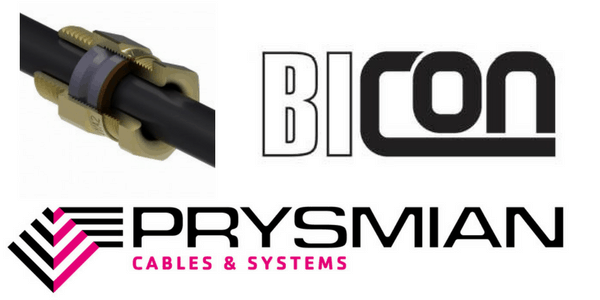

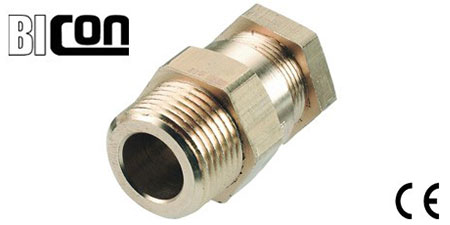

Pictured : Prysmian BICC BICON A2 LSF Cable Gland



Note - Cables and accessories rarely initiate fires, but they could be involved in them and can significantly increase the damage caused should they propagate the fire. Until recently the flame retarding of cables was achieved by the use of halogenated flame retardants which are effective fire suppressants, but which unfortunately produce dense smoke and corrosive acid gases when burned. These effects are highly undesirable in a fire, hindering evacuation and fire fighting, endangering life and causing corrosion damage to expensive and vital equipment. The terms Limited Fire Hazard (LFH), Low Smoke & Fume (LSF), Low Smoke Halogen Free (LSHF) and Low Smoke Zero Halogen (LSZH) (LS0H) are used as material descriptions and as industry trade marks.



Prysmian BICC BICON A2 423LSF Brass LSF Cable Glands NEW

Prysmian BICC BICON A2 Brass LSF Cable Glands
