Prysmian A232 423LSF-56 (19.0-25.5mm) LSF Brass BICON Gland Kits

A2 Cable Glands - LSF

BICC BICON A232

Prysmian 423LSF-56

Prysmian BICON LSF A2 Cable Gland Kits

LV Cable Terminations



BICC Bicon A232 LSF Cable Glands - Gland Kit Prysmian 423LSF-56

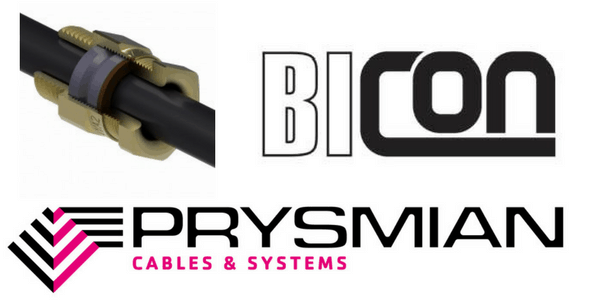

Prysmian Bicon 423LSF-56 (A232) A2 LSF cable glands with 32mm entry thread enable cable termination of unarmoured low smoke zero halogen cables – the A232 cable gland LSF kit provides mechanical cable retention up to 25.5mm cable diameters.

A232 LSF cable glands are LUL approved for safe use on London Underground including sub-surface (tunnels) and stations (LUL APR Product ID 1971).

A232 cable gland termination is available in a Nickel plated version Prysmian 423LSF-56V.



A232 BICON Brass Cable Gland Kits

• Min Cable Dia 19.0mm
• Max Cable Dia 25.5mm
• Gland Entry Thread M32 x 1.5mm
• Gland Entry Thread Length 10mm

For LSF (Low Smoke & Fume), LSOH (Low Smoke Zero Halogen) Cables

1 x A232 Cable Glands Per Pack - M32 Cable Gland Entry Thread

• Nickel Plated Version - Prysmian 423LSF-56V

A232 LSF Cable Glands

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Size: A232
• Quantity Per Kit: 1 Cable Gland
• Cable Gland Type: Brass
• Cable Type: SWA Steel Wire Armoured BS6724
• Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen

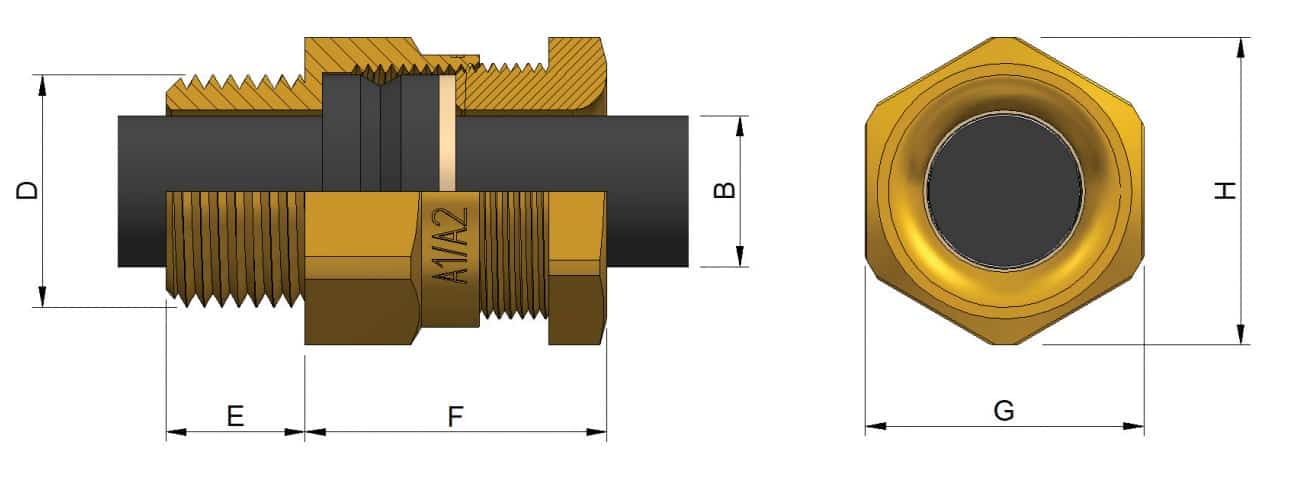

• Cable Diameter (B): 19.0mm Minimum
• Cable Diameter (B): 25.5mm Maximum
• Entry Thread (D) : M32 x 1.5
• Thread Length (E) : 10mm
• Protrusion Length (F): 25mm
• Hexagon A/F (G): 42.4mm
• Hexagon A/C (H): 48mm
• Order Code: A232 423LSF-56
• Industrial Application Also: Prysmian A232 Cable Gland KM409-56

Application - Indoor/outdoor A2 BICON LSF cable gland kits for mechanical retention of low smoke and fume, low smoke zero halogen unarmoured cables ("stuffing glands"). Suitable for cable glanding circular, unarmoured polymeric (XLPE), PVC and rubber sheathed cables. A2 Prysmian BICON gland kits are rated to IP66 with use of suitable sealing washer or thread sealant at cable gland interface.

Prysmian LSF cable glands comply with LU Standard 1-085 for installation in all London Underground sub-surface locations. Suitable for terminating Prysmian Draka zero halogen low smoke cables including OHLS Saffire and Afumex.





<

A232 (19.0-25.5mm) LSF Brass BICON Gland Kits - Prysmian 423LSF56
