SPS Outdoor Armour Earth Kits  for Single & 3 Core Cables - 3.3kV 33kV

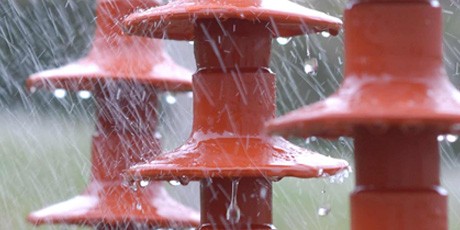

11kV 33kV Heat Shrink Terminations



SPS outdoor armour earth kits suit single core and three core high voltage cables, 3.3kV to 33kV, and are recommended for outdoor pole top mounted terminations and installations where no earth gland is fitted.

Video Blog : Importance Of Outdoor Armour Earthing For 11kV 33kV Heat Shrink Cable Terminations

Outdoor Armour Earth Kits - XLPE Kit List, Typical

• Cable armour support rings
• Cable armour clamps
• Insulated copper earth wire braids
• Mastic sealant tape
• Adhesive lined heat shrink sealing tube
• Cable cleaning tissues
• HV cable jointers installation instructions

Pictured: Outdoor Armour Earth Kits for Single & 3 Core Cables, 3.3kV to 33kV

Outdoor armour earth kits for high voltage Paper Insulated Lead Covered (PILC) cables are as above with addition of a copper earth strap and stainless steel roll spring for PILC or perforated tinner copper strip for PICAS cables.

T&D UK distribute the complete range of SPS High Voltage Joints and Terminations up to 33kV.

• Cable Termination Accessories 3.3kV 33kV
• Cable Gland, Bushing Boots, Screen Earth Kit, Lugs (Crimp or Mechanical)
