Single Core Polymeric (XLPE EPR) 33kV-36kV



Heat Shrink Cable Termination Kits 35-630sqmm



High Voltage (HV) Cable Joints & Cable Terminations – Overview

T&D UK stock and distribute HV high voltage cable joint and cable termination kits for 3.3kV, 6.6kV, 11kV, 15kV, 33kV and Triplex cable systems.



This includes 33kV heat shrink joints and cable termination kits for single and 3 core high voltage powerSingle Core Polymeric Cable Termination cables with XLPE, EPR or PILC insulation, copper wire screen or copper tape screens, unarmoured or armoured (AWA SWA) and with or without lead sheath cover.



SPS 33kV heat shrink single core polymeric cable terminations are tested and qualified as outlined in Cenelec standards HD 628 S1 and 629.1 S2 : 2006.



Pictured : 33kV Heat Shrink Cable Terminations. Suitable for terminating 33kV and 36kV Single Core Polymeric (XLPE & EPR) Cables, both indoor and outdoor kits available for high voltage cables.

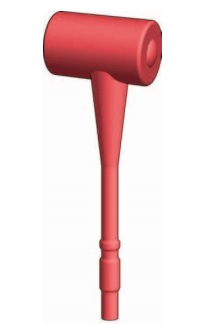

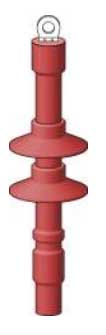

Heat Shrink Single Core Outdoor 33kV 36kVHeat Shrink Cable Termination Indoor 33kV 36kV



SPS High Voltage 33kV Cable Termination Kit List (Typical)

33kV Single Core Cables Indoor

  • Anti-track heat shrink core tubes x 3
  • Stress control heat shrink tubes x 3
  • Yellow stress relief tape for screen ends x 3
  • Red mastic sealing tape x 1
  • Cable cleaning and de-greasing wipes x 3
  • Box, label, jointing instructions x 1

Note : Outdoor 33kV cable terminations include rain sheds.

  • Cable Termination Accessories 33kV 36kV
  • Cable Gland, Bushing Boots, Screen Earth Kit, Lugs (Crimp or Mechanical)

Cable Termination Accessories
