3 Core Polymeric (XLPE EPR) 22kV-24kV Heat Shrink Cable Termination Kits

Cable Terminations 3 Core XLPE EPR 22kV 24kV











SPS High Voltage Cable Termination Kits 6.6kV, 11kV, 33kV



3 Core Polymeric (XLPE EPR) 22kV-24kV



Heat Shrink Cable Termination Kits 25-300sqmm



High Voltage (HV) Cable Joints & Cable Terminations – Overview

T&D UK stock and distribute HV high voltage cable joint and cable termination kits for 3.3kV, 6.6kV, 11kV, 15kV, 33kV and Triplex cable systems.



This includes 22kV heat shrink joints and cable termination kits for single and 3 core high voltage power3 Core Polymeric Cable Termination cables with XLPE, EPR or PILC insulation, copper wire screen or copper tape screens, unarmoured or armoured (AWA SWA) and with or without lead sheath cover.



SPS 22kV heat shrink 3 core polymeric cable terminations are tested and qualified as outlined in Cenelec standards HD 628 S1 and 629.1 S2 : 2006.

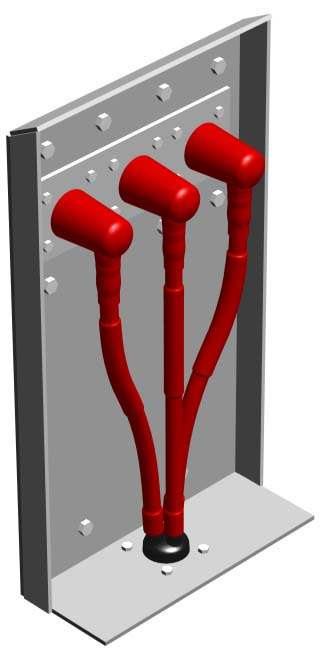

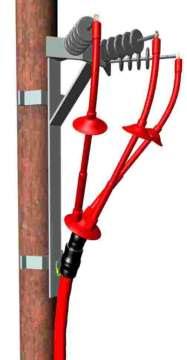

Pictured : 22kV Heat Shrink Cable Terminations. Suitable for terminating 22kV and 24kV 3 Core Polymeric (XLPE & EPR) Cables, both indoor and outdoor kits available for high voltage cables.



Heat Shrink 3 Core Outdoor 22kV 24kVHeat Shrink Cable Termination Indoor 22kV 24kV



SPS High Voltage 22kV Cable Termination Kit List (Typical)

22kV 3 Core Cables Indoor

  • Anti-track heat shrink core tubes x 3
  • Stress control heat shrink tubes x 3
  • Yellow stress relief tape for screen ends x 3
  • Red mastic sealing tape x 1
  • Cable cleaning and de-greasing wipes x 3
  • Box, label, jointing instructions x 1
  • 3 core heat shrink cable breakout boot

Note : Outdoor 22kV cable terminations include rain sheds.

  • Cable Termination Accessories 22kV 24kV
  • Cable Gland, Bushing Boots, Screen Earth Kit, Lugs (Crimp or Mechanical)

Cable Termination Accessories



Adobe Instruction - 22-24kV Heat Shrink Cable Terminations XLPE EPR 3 Core

Adobe HV Cable Terminations & Joint Kits (Heat Shrink) - SPS Catalogue
