Abtehc DPJB Hazardous Area Electrical Enclosure (ATEX & IECEx)





Abtech DPJB HV Electrical Enclosures

Abtech DPJB high voltage hazardous area electrical enclosures and junction boxes provide safe power distribution for 11kV systems up to 630sqmm cables – ATEX certified for Zone 1 and Zone 2 connection of HV cables in hazardous area locations.

Abtech DPJB high voltage electrical enclosures can be used as either a straight through cable jointing box or with incoming and outgoing cables (3.3kV, 6.6kV, 11kV) entering via one end for hazardous area installations.

Abtech DPJB electrical enclosure can be supplied with a separate compartment enabling the termination of low voltage control or fibre optic cables - this variant Abtech DPJB cable connection box allows access to the low voltage network without de-energising the high voltage cable.

High HV Enclosure Specification

  • Electrical Enclosure Type – High Voltage (HV)
  • Ingress Protection – IP66, IP67
  • Material – Stainless Steel Enclosure
  • Ambient Temperature Rating –20ºC to +55ºC
  • Maximum Number Of HV Cable Terminations – 3 conductors per phase in & 3 conductors per phase out
  • Number Of HV Cable Gland Plates – 2
  • Suitable for 3.3kV, 6.6kV, 8.3kV
  • Connector Size – 6sqmm to 630sqmm
  • Earthing – Via studs on enclosure, door and gland plates
  • Mounting – Via 3mm thick external mounting straps, slotted upper strap for ease of installation
Abtech DPJB HV Hazardous Area (ATEX) Electrical Enclosure Specifications
Abtech Part Number Width (mm)
(Dimension B)
Height (mm)
(Dimension A)
Depth (mm) Power Rating
(W)
Max
Voltage (kV)
Max Ways  Max.
Conductor
Size (mm2)
DPJB1 650 950 200 48.6 6.6 3 630
DPJB3 650 950 200 48.6 6.6 4 630
DPJB5 800 1250 300 48.6 6.6 3 630
DPJB7 800 1250 300 48.6 6.6 4 630
DPJB9 800 1250 300 48.6 11 3 630
DPJB11 800 1250 300 48.6 11 4 630
DPJB2 650 950 200 50.0 6.6 4 120

Abtech DPJB HV Hazardous Area (ATEX & IECEx) Electrical Enclosure Range - Standard Specifications

  • Application: Industrial and Hazardous areas
  • Protection Degree: IP66 or 67
  • Certification: ATEX EEx e (Zone 1 & Zone 2) to BS EN 60079-7 NEMA 4X (CSA, UL & FM) Class 1 Division 2 Deluge Tested to DTS-01
  • Material: Stainless steel 316 (1.4404) or Mild steel
  • Temperature: Rating Standard: -20o to 40o C (-4o to 104o F)
  • Option: -50o to 65o C (-58o to 149o F)
  • Maximum Voltage: 11 kV
  • Fault Rating: 50kA for 1 second

Enclosure Options

  • Abtech DPJBACH – Anti-condensation heater
  • Abtech DPJBEP – Electro-polished
  • Abtech DPJBPS – Epoxy powder coated, smooth finish (RAL colour may be specified)
  • Abtech DPJBPT – Epoxy powder coated, Hammer Grey
  • Abtech DPJB67 – IP67 ingress protected

Add the required suffix to the product reference. Example: DPJB167 = DPJB1 enclosure with IP67 ingress protection

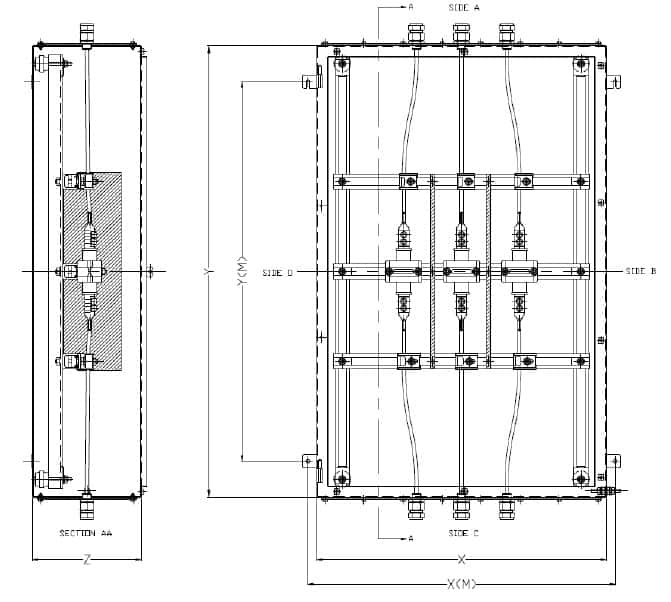

Abtech DPJB General Arrangement HV Enclosure Drawing

Abtech DPJB General Arrangement HV Enclosure Drawing
