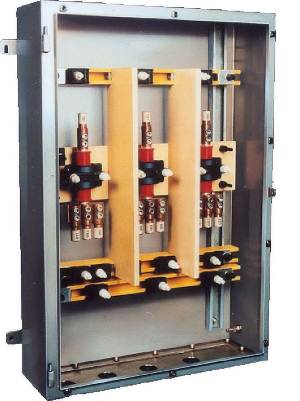

Abtech DPJB5

Abtech DPJB5

HV Electrical Enclosures & Junction Boxes

ATEX Electrical Enclosures & Junction Boxes for Hazardous Areas

Zone 1 & Zone 2 Enclosures & Junction Boxes LV HV





Abtech DPJB5 High Voltage (HV) Enclosure Features :

• Stainless steel or mild steel electrical enclosures
• Fault rated to 50kA for 1 second
• IP66 or IP67 ingress protection
• Shell/ERA deluge specification tested
• Padlock facility
• ATEX certified enclosures for Category 2 Zone 1 and Category 3 Zone 2 hazardous areas

Abtech DPJB5 high voltage electrical enclosures with ATEX certification can be used as either a straight through cable jointing box or with incoming and outgoing cables (3.3kV, 6.6kV, 11kV) entering via one end.

Abtech DPJB5 HV Hazardous Area Electrical Enclosure Specifications

Width (mm) (Dimension B)	Height (mm) (Dimension A)	Depth (mm)	Power Rating (W)	Maximum Voltage (kV)	Maximum Ways	Max. Conductor Size (mm2)
800	1250	300	48.6	6.6	3	630



Abtech DPJB5 HV electrical enclosures (ATEX and IECEx certified) can be supplied with a separate compartment enabling the termination of low voltage control or fibre optic cables, commonly referred to as "splitter boxes"  - this variant Abtech DPJB cable connection box allows access to the low voltage network without de-energising the high voltage cable working in hazardous area Zones 1, 2, 21 and 22.

Abtech DPJB5 - High Voltage, Hazardous Area (ATEX) Certified Electrical Enclosures
