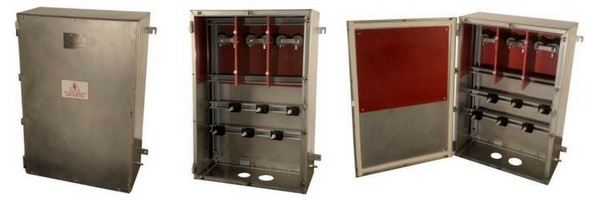

Abtech ABJB ATEX & IECEx Rated Electrical Enclosure

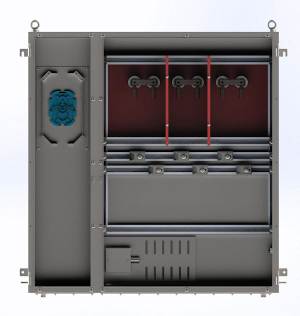

Abtech ABJB 125 HV Hazardous Area (ATEX & IECEx) Enclosure with Splitter Box

Abtech ABJB 125 HV electrical enclosure is designed with the latest features that are also featured on the Abtech HVJB high voltage enclosure. This is comprised of a seperate control compartment (splitter box), designed for terminating low voltage control and fibre optic cables with each department being independently IP66 ingress protected.

Ideally suited to the termination of offshore or umbilical cables or onshore distribution systems, the Abtech ABJB 125 electrical enclosure's design allows maintenance and installation without the need to isolate the HV power supply in hazardous areas.

The power conductor compartment can handle cables up to 15kV high voltage cable and is fault rated 45kA for one second.

Abtech ABJB 125 ATEX & IECEx Electrical Enclosure Ratings

Abtech Product Reference

Control
Location
Width
(mm)
Height
(mm)
Depth
(mm)
Power
Rating @
T4 (W)
Max
Voltage
(kV)
Max
Current
(A)
Max
No. of
Ways
ABJB1253(x-x)LH  Left  1200 1250 300 346  15  980 3
ABJB1254(x-x)LH Left  1200 1250 300 346  15  980 4
ABJB1253(x-x)RH  Right 1200 1250 300 346  15  980 3
ABJB1254(x-x)RH Right 1200 1250 300 346  15  980 4



Abtech ABJB 125 ATEX & IECEx Enclosure Standard Specifications

  • Enclosure Type: High Voltage
  • Ingress Protection: IP66/67 to EN60529, Type 4X, DTS-01
  • Material: 2mm 316L Stainless Steel (EN 1.4404) enclosure with orbital finish, silicone gasket and captive 316 stainless steel fasteners, 3mm 316L (EN 1.4404) Stainless Steel gland plates
  • Ambient Temp Rating: -20ºC to +40ºC or -50ºC to +55ºC (refer to certificate)
  • Maximum Cable Terminations: 3 conductors per phase in & 3 conductors per phase out
  • Crimp Lugs: 16sqmm to 1000sqmm
  • ​Earthing: Via studs on electrical enclosure, door and gland plates
  • Mounting: Via 3mm thick external mounting straps, slotted upper strap for ease of installation

Hazardous Area Certification (Dual Certified)

  • Area Classification: Zone 1 & 21, Gas and Dust / Class 1 Division 2
  • Type of Protection:  Ex e (Increased Safety), Ex tb (Dust Protected), Ex op is (optical radiation, inherently safe)
  • Apparatus Coding: Ex II 2 G, Exe II T4, Ex tD A21 T70ºC, Ex op is IIC T4 Gb
  • Certificate Number: Sira 08ATEX3017X
