Abtech HVJB 125 HV Hazardous Area (ATEX & IECEx) Electrical Enclosure

Abtech

Abtech HVJB 125

HV Electrical Enclosures & Junction Boxes

Seperate Control Compartment - Splitter Box

ATEX & IECEx Certified & Rated - Zone 1 (Ex e)

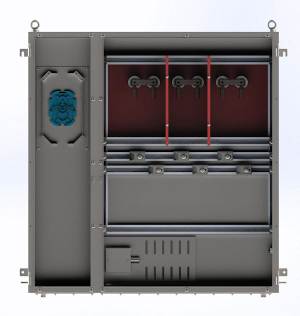

Abtech HVJB 125 ATEX & IECEx Rated Electrical Enclosure



Abtech HVJB 125 HV Electrical Enclosure ATEX IECEx Rated

Abtech HVJB 125 high voltage electrical enclosure includes the design features of the standard Abtech HVJB junction box range with the addition of a seperate control panel - often referred to as a 'splitter box' for installation in hazardous areas.

"Splitter boxes" allow the termination of high voltage power cables in conjunction with low voltage fibre optic and control cables in Zone 1 hazardous areas in the oil, gas and petrochemical industries.

Each electrical enclosure is ingress protection to IP66 and is fully ATEX & IECEx hazardous area certified.

This high voltage enclosure is particularly suited to the termination of offshore umbilical cables, cords and onshore distribution systems. The HV splitter box system allows installation and maintenance workers to carry out work on cable conductors without having to isolate the HV power supply.

The power conductor compartment of the Abtech HVJB 125 is fault rated up to 45kA and houses cables up to 11kV.

Abtech HVJB 125 ATEX & IECEx Electrical Enclosure Ratings

Product
Reference*
Control
Location
Width
(mm)
Height
(mm)
Depth
(mm)
Power
Rating @
T4 (W)
Max
Voltage
(kV)
Max
Current
(A)
Max
No. of
Ways

HVJB1253(x-x)LH

Left  1200 1250  314 346/173 11 980 3
HVJB1254(x-x)LH  Left  1200 1250  314 346/173 11 980 4
HVJB1253(x-x)RH  Right  1200 1250  314 346/173 11 980 3
HVJB1254(x-x)RH  Right  1200 1250  314 346/173 11 980 4





































Abtech HVJB 125 ATEX & IECEx Enclosure Standard Specifications

  • Enclosure Type: High Voltage
  • Ingress Protection: IP66/67 to EN60529, Type 4X, DTS-01
  • Material: 316L Stainless Steel (EN 1.4404) enclosure, silicone gasket and 316 stainless steel fasteners
  • Ambient Temp Rating: -20ºC to +40ºC or -50ºC to +55ºC (refer to certificate)
  • Maximum Cable Terminations: 3 conductors per phase in & 3 conductors per phase out
  • Crimp Lugs: 16sqmm to 1000sqmm
  • Earthing: Via studs on electrical enclosure, door and gland plates
  • Mounting: Via external mounting feet

Hazardous Area Certification (Dual Certified)

  • Area Classification: Zone 1 & 21, Gas and Dust / Class 1 Division 2 / GOST-R
  • Type of Protection: Ex e (Increased Safety), Ex tb (Dust Protected), Ex op is (optical radiation, inherently safe)
  • Apparatus Coding: Ex e IIC T4 Gb, Ex tb IIIC T70ºC Db / Ex e IIC T150ºC Gb, Ex tb IIIC T110ºC Db
  • Certificate Number: ATEX: Sira 02 ATEX3266, Sira 99 ATEX3171X / IECEx: SIR 12.0069, SIR 05.0047X

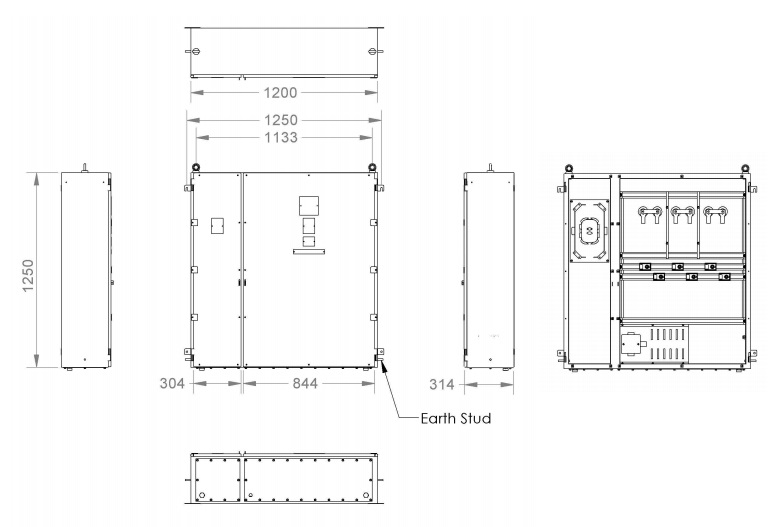

Abtech HVJB 125 HV Hazardous Area (ATEX & IECEx) Electrical Enclosure - Dimensions

Abtech HVJB 125 HV Hazardous Area (ATEX & IECEx) Electrical Enclosure - Dimensions
