3M Cold Shrink Cable Terminations - Quick Term QTII v QTIII Kits

11kV Cold Shrink Cable Terminations

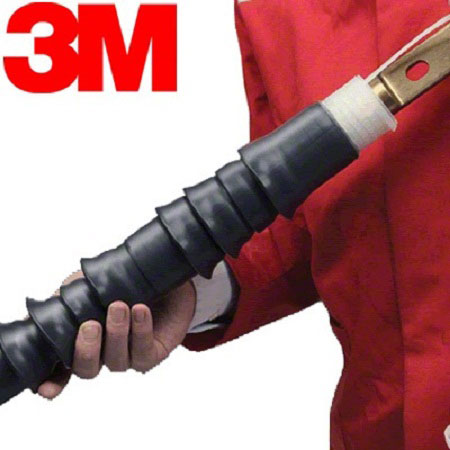

3M QTIII Cold Shrink Terminations

Premium 3M Range - Fully Integrated

3M QTIII Cold Shrink terminations kits are fully integrated cable terminations offering the greatest simplicity and flexibility to the high voltage cable jointer.

3M QTIII Premium Range Cold Shrink Cable Terminations cover a wide range of cable sizes (sqmm and AWG) and types (XLPE, PILC, EPR, Triplex) up to 66kV.

Shorter installation lengths enable the QTIII terminations to fit into a wide range of HV cable end boxes and less installation steps reduces room for HV jointer error.

3M QTII Cold Shrink Terminations - Standard 3M Range - Part Integrated

3M QTII Cold Shrink terminations kits offer a viable cost-based alternative to heat shrink cable terminating technology.

Additional HV installation steps mean that comparative time savings are less but the benefits of not having to use heat, naked flames or extra tooling still apply.

3M QTII v QTIII Cold Shrink Terminations

• Moisture Blocking Mastic

QTIII Termination  - Integrated into cable termination

QTII Termination - Applied separately

• Outer Insulator

QTIII Termination - Very good track resistance

QTII Termination - Good track resistance

• Stress Control Tube

QTIII Termination - Integrated into cold shrink cable termination

QTII Termination - Integrated into cold shrink termination

• Silicone Grease Stress Relief

QTIII Termination - No, integrated mastic is sufficient

QTII Termination - Yes, applied separately

• Stress Control Mastic

QTIII Termination - Integrated into cold shrink cable termination

QTII Termination - No, requires silicone grease

3M Cold Shrink Terminations & Cable Joints - 3M Selection Guide (HV)
