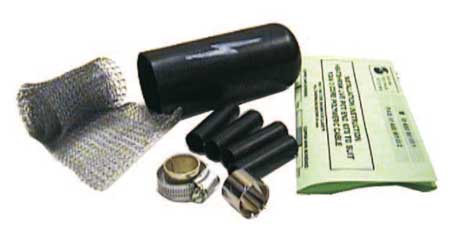

Low Voltage Live Pot End Kits



Heat shrink pot end (stop-end) joint kits and live cable end seals are used to abandon live low voltage cable ends. Each core is separately sealed using small heat shrink cable end caps and a screen bandage applied to reinstate earth fault protection. Finally a thick wall outer heat shrink cable cap is installed with a live flash symbol.

SPS Low Voltage Live Pot End Kits

Heat shrink pot ends are available for EPR, XLPE and PILC paper insulated multicore cables.

Service cable pot-ends to DNO specification are available to suit single and three phase CNE cable (4-35sqmm) and single and three phase PILC cable (16-35sqmm).

SPS LV Heat Shrink Pot End Joints & Live Cable End Seals
SPS Part Number PILC Cable Cable Range SPS Part Number XPLE Cable
SPS POT 4-10-4PB 4 Core 4-10sqmm SPS POT 4-10-4X
SPS POT 16-35-4PB 4 Core 16-35sqmm SPS POT 16-35-4X
SPS POT 50-95-4PB 4 Core 50-95sqmm SPS POT 50-95-4X
SPS POT 120-185-4PB 4 Core 120-185sqmm SPS POT 120-185-4X
SPS POT 240-400-4PB 4 Core 240-400sqmm SPS POT 240-400-4X



SPS Heat Shrink Cable Joints & Cable Terminations - Quality Performance Testing : Shrink Polymer Systems heat shrink cable joints and cable termination kits are tested to BS7888 which incorporates Cenelec Standards HD 628 S1 and 629.1 S2 : 2006, DIN VDE0279 and IEC60502.



Video: Heat Shrink Live Pot End Joint (HV) - ) - 11kV Single Core XLPE BS7870 Cables
