Ripley Utility Tool WS 57A - Combination, End and Jacket Stripper, and Semi-con Shaver

Ripley Tools

Overhead High Voltage Cable Preparation Tools

Ripley WS 57

Combination, End and Jacket Stripper, and Semi-con Shaver

Ripley WS 57A adjustable end stripper, jacket stripper and semi-con shaver is used when splicing, joining and terminating both HV and LV overhead power, transmission and distribution cables and has similar features to the WS 57.

Ripley WS 57A combination end and jacket stripper suiatble for 45 to 115KV cables. The WS 57A has a blade angle which is easy to set cutting deep and adjusts easily to control the width of the end strip cut.

The end and jacket stripper has quick slide adjustment for cable sizing and is suitable for XLPE, polyethylene and EPR insulations

In addtion the Ripley WS 57A has an adjustable semi-con shaving blade system.

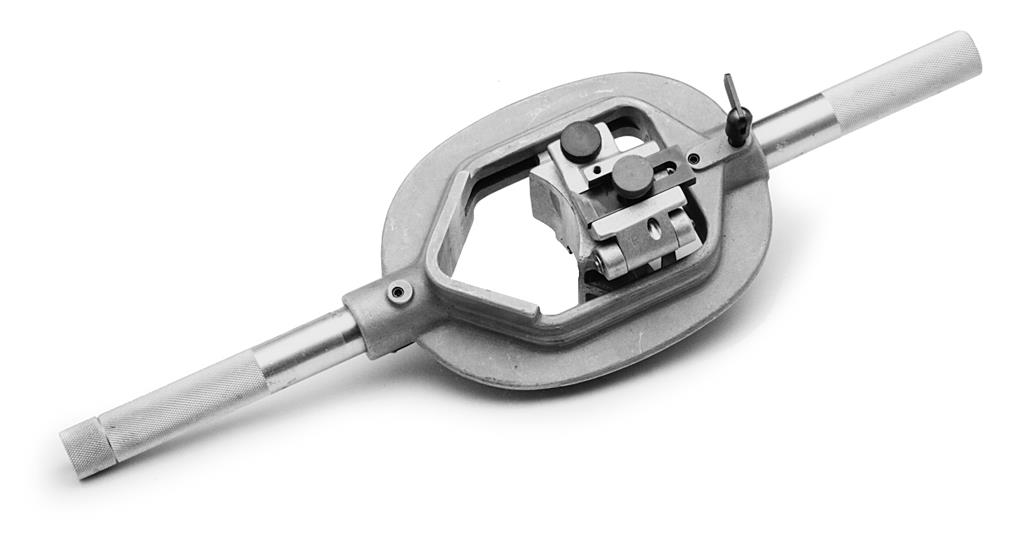

Pictured: Ripley Utility Tool WS 57A Combination, End and Jacket Stripper, and Semi-con Shaver

Ripley WS 57A Combination, End and Jacket Stripper, and Semi-con Shaver Specifications:

• Same features as WS 57 plus
• Replacement blades: – CB 40X shaving blade (Part No.: 21715) – CB 144 end stripping blade (Part No.: 34327)
• Length: 24 in (610 mm)
• Weight: 7 lb (3.18 Kg)
• Part No.: 34735
• Made in the U.S.A
