Abtech ZAG8 Aluminium Electrical Enclosure & Junction Box

Abtech ZAG8

Abtech ZAG Aluminium Electrical Enclosures & Junction Boxes

 ATEX & IECEx Ex ‘e’ (Zone 1 & 2), Ex ‘nA’ (Zone 2)





Abtech ZAG8 Aluminium Electrical Enclosures & Junction Boxes - Specification

Constructed from aluminium alloy, the Abtech ZAG8 electrical enclosure is supplied painted in epoxy polyester grey.

Hazardous Area Zone 1 & Zone 2 Certified (ATEX) Enclosures - Abtech ZAG aluminium enclosures and junction boxes are available in a full range of dimensions.

Abtech Part Reference	Enclosure Material	Width mm	Length mm	Depth mm	Weight g
Abtech ZAG8 Enclosure	Painted Aluminium (RAL7001)	250	80	56	710	Zone 0, Zone 1 & Zone 2
Abtech ZAG8R Enclosure	Unpainted Aluminium	250	80	56	710	Zone 0, Zone 1 & Zone 2

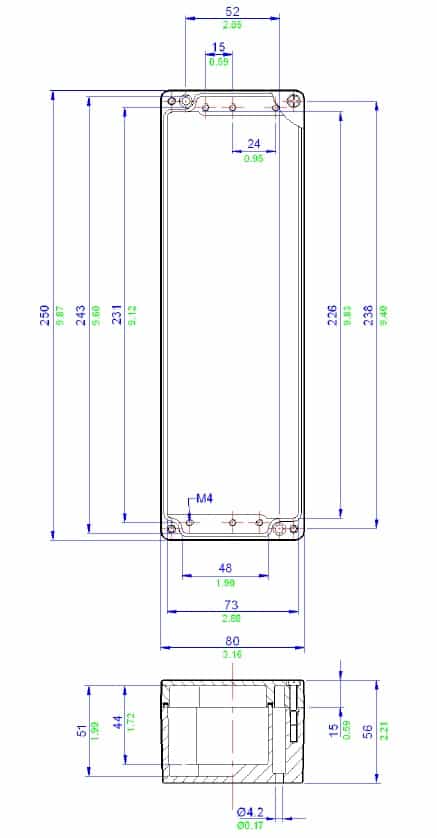

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.

Aluminium Enclosure Junction Box - Abtech ZAG8 - 250 x 80 x 56mm
