Abtech ZAG7 Aluminium Electrical Enclosure & Junction Box

Abtech ZAG7

Abtech ZAG Aluminium Electrical Enclosures & Junction Boxes

 ATEX & IECEx Ex ‘e’ (Zone 1 & 2), Ex ‘nA’ (Zone 2)

Class 1, Div 2 (CSA, UL & FM)





Abtech ZAG7 aluminium electrical enclosures are ATEX Certified for use in Zone 0, Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from stainless steel and available in a full range of depths and sizes.

• ATEX Ex ia (Zone 0) and Ex ta (Zone 20)
• ATEX Ex e Ex ib (Zone 1) and Ex tb (Zone 21)
• ATEX Ex nA (Zone 2) and Ex tc (Zone 22)

Abtech Part Reference	Enclosure Material	Width mm	Length mm	Depth mm	Weight g
Abtech ZAG7 Enclosure	Painted Aluminium (RAL7001)	175	80	57	540	Zone 0, Zone 1 & Zone 2
Abtech ZAG7R Enclosure	Unpainted Aluminium	175	80	57	540	Zone 0, Zone 1 & Zone 2

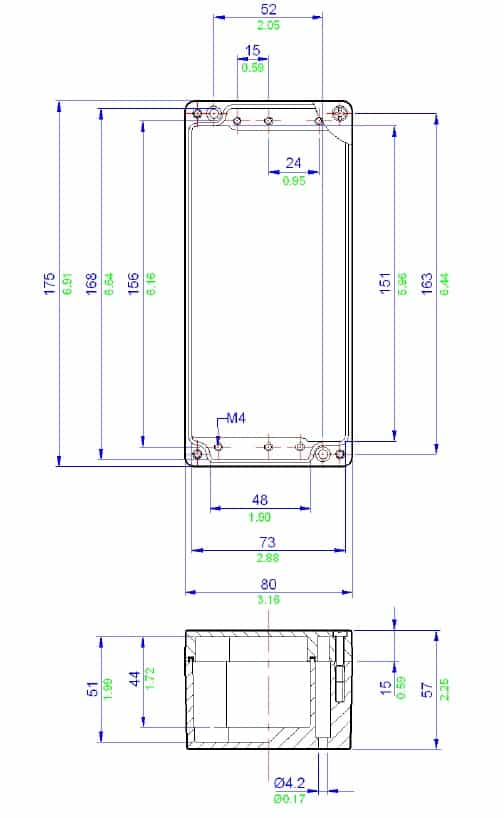

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.

Aluminium Enclosure Junction Box - Abtech ZAG7 - 175 x 80 x 57mm
