Abtech ZAG4 Aluminium Electrical Enclosure & Junction Box

Abtech

Abtech ZAG4

Abtech ZAG Aluminium Electrical Enclosures & Junction Boxes

 ATEX & IECEx Ex ‘e’ (Zone 1 & 2), Ex ‘nA’ (Zone 2)

Class 1, Div 2 (CSA, UL & FM)

Abtech ZAG4 LV Hazardous Area (ATEX & IECEx) Electrical Enclosure

Abtech ZAG4 LV Hazardous Area (ATEX & IECEx) Electrical Enclosure





Abtech ZAG4 aluminium electrical enclosures are ATEX Certified for use in Zone 0, Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from stainless steel and available in a full range of depths and sizes.

  • ATEX Ex ia (Zone 0) and Ex ta (Zone 20)
  • ATEX Ex e Ex ib (Zone 1) and Ex tb (Zone 21)
  • ATEX Ex nA (Zone 2) and Ex tc (Zone 22)
  •
Abtech Part Reference Enclosure Material  Width mm Length mm Depth mm Weight g ATEX
Abtech ZAG4 Enclosure Painted Aluminium (RAL7001) 150 64 34 330 Zone 0, Zone 1 & Zone 2
Abtech ZAG4R Enclosure Unpainted Aluminium 150 64 34 330 Zone 0, Zone 1 & Zone 2



Abtech ZAG4 Enclosures

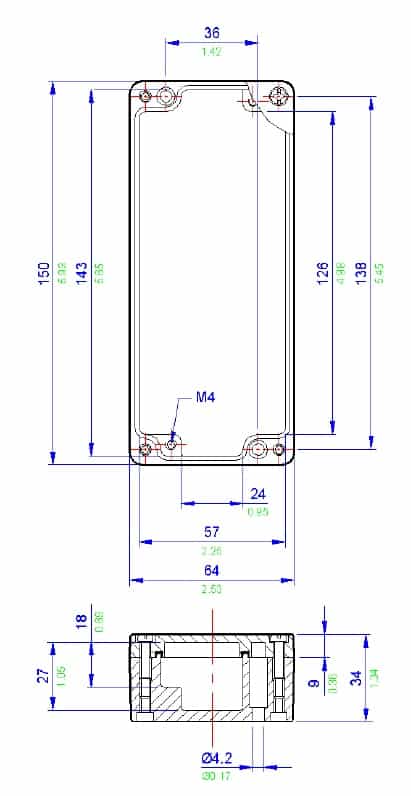

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.

Adobe Aluminium Enclosure Junction Box - Abtech ZAG4 - 150 x 64 x 34mm
