Abtech ZAG16 Aluminium Electrical Enclosure & Junction Box

Abtech ZAG16

Abtech ZAG Aluminium Electrical Enclosures & Junction Boxes

 ATEX & IECEx Ex ‘e’ (Zone 1 & 2), Ex ‘nA’ (Zone 2)

Class 1, Div 2 (CSA, UL & FM)





Abtech ZAG16 aluminium electrical enclosures are ATEX Certified for use in Zone 0, Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from stainless steel and available in a full range of depths and sizes.

• ATEX Ex ia (Zone 0) and Ex ta (Zone 20)
• ATEX Ex e Ex ib (Zone 1) and Ex tb (Zone 21)
• ATEX Ex nA (Zone 2) and Ex tc (Zone 22)

Abtech ZAG16 Aluminium Electrical Enclosure & Junction Box

Abtech Part Reference	Enclosure Material	Width mm	Length mm	Depth mm	Weight g
Abtech ZAG16 Enclosure	Painted Aluminium (RAL7001)	330	230	110	4270	Zone 0, Zone 1 & Zone 2
Abtech ZAG16R Enclosure	Unpainted Aluminium	330	230	110	4270	Zone 0, Zone 1 & Zone 2

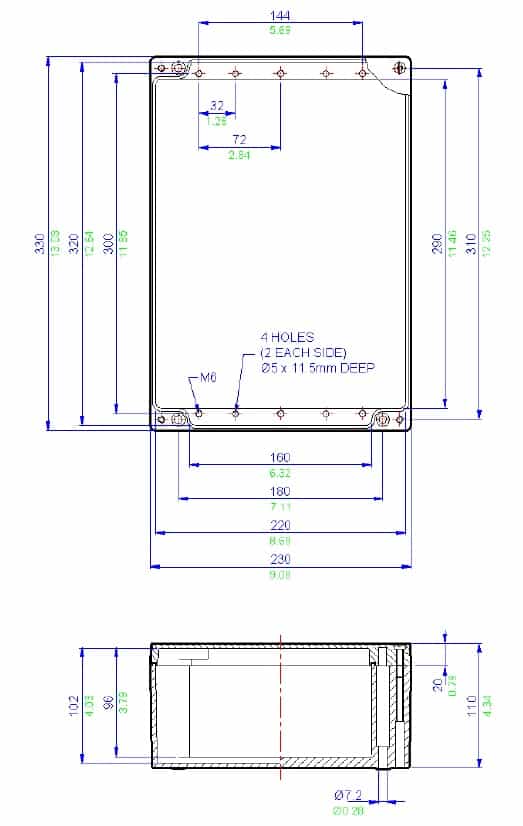

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.



Aluminium Enclosure Junction Box - Abtech ZAG16 - 330 x 230 x 110mm
