Cast Iron Heritage Feeder Pillars

Classic robust Lucy Lighting cast iron service pillars have been designed for increased weather protection, security and very long service life.

Available in a range of sizes, locking arrangements and colours the Heritage Feeder Pillar range can be supplied to customers specification.

Two heights of cast iron service pillars are available - Highline (1454mm) and Lowline (1149mm) feeder pillars with common width and depth.

Pictured: Cast Iron Heritage Feeder Pillars

Lucy Heritage Feeder Pillars Cast Iron

Cast Iron Service Feeder Pillars, Lucy Heritage Range - Specification:

  • Pillar cap and sides cast in close grain grey iron to BS1452 : Grade 180
  • Dark admiralty grey or hollybush green colours available
  • IP3L3 degree of protection to IEC 947-1 standard
  • Doors and back panels fabricated from 4mm chrome enriched steel
  • Doors can be fiited back and front for REC and local authority access
  • 15mm plywood backboard
  • Two wedge locks with security covers fitted

Cast iron service pillar options - in-fill/apron plates, yale lock, bar lock, colours, interior lighting, heater kits and electrical interior fit out.

Cast Iron Heritage Feeder Pillars - Product Range
Pillar Size Code 30 38 42 46 54 58 66
Width of Pillar Roof (RW) (mm) 835 1045 1146 1248 1452 1553 1756
Ground Fixing Centres (Bolt On Root Only) (mm) 476 686 787 889 1092 1194 1397
Ground Fixing Centres (Shell Only) (mm) 724 934 1035 1137 1340 1442 1645
Min. Distances Required To Open Door (mm) 486 452 503 554 655 706 808
Internal Width (mm) 762 972 1073 1175 1378 1480 1683
Backboard Width (mm) 686 896 997 1099 1302 1404 1607
Empty Weight (kg) - Highline 280 315 332 360 398 415 440
Empty Weight (kg) - Lowline 241 279 292 318 343 368 394

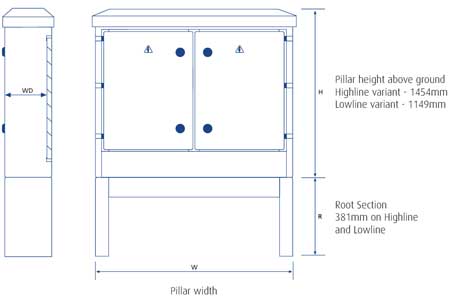

Pictured: Cast Iron Heritage Feeder Pillars - Dimensions Illustration

Cast Iron Heritage Feeder Pillars - Dimensions Illustration
