Fire Resistant (FP) Cable Cleats - Prysmian 370CG04 -18-22mm

Prysmian Fire Resistant Cable Cleat

Prysmian 370CG04







Prysmian 370CG04 Fire Resistant Claw Cable Cleats are manufactured from cast iron suitable for all cable routes including a two hour excursion of up to 1000ºC – Claw Cleats are part of the Prysmian BICON cable cleat range.

Prysmian 370CG04 fire resistant cable cleats with single bolt fixing are suitable for fire performance cables up to 22mm outer sheath diameter.

Prysmian 370CG04 Cable Cleat

Technical Specification

• Hot Dip Galvanised Finish On Cast Iron Cable Cleat
• Two Piece Single Fix Design
• Fire Resistant Cable Cleat
• Cable Cleat Diameter Min 18mm
• Cable Cleat Diameter Max 22mm

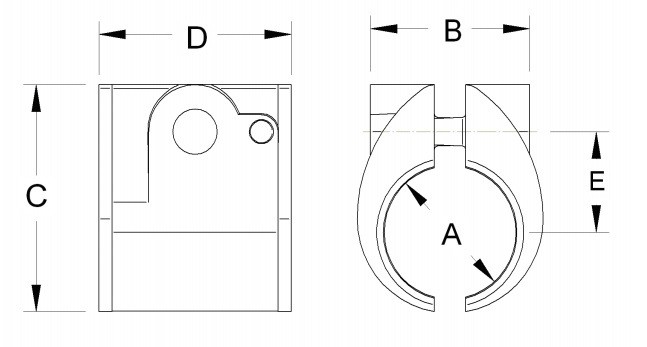

Prysmian 370CG04 Cable Cleat Dimensions

• B Max 28mm
• C 45mm
• D 46mm
• E 19mm
• Weight 279g





Fire Resistant (FP) Cable Cleats - Prysmian 370CG04 - 18-22mm
