Lucy Heavy Duty Cut-outs - 200A, 400A, 600A

Lucy Heavy Duty Cut-outs

Lucy Switchgear HDCO



Lucy Switchgear Heavy Duty Cut-outs (HDCOs) are available with 200A, 400A and 600A current ratings and capable of low voltage cable termination up to 300sqmm, aluminium or copper conductors.

Lucy Insulated Heavy Duty Cutouts (415V ac)

The Lucy Insulated Heavy Duty Cut-outs incorporate a redesigned trough to allow a choice of three cable entry positions, And also have a sealing wire facility. Lucy Insulated Heavy Duty Cut-outs are manufactured from Glass reinforced polyamide 6, and include Tinned Copper Busbars, have Polybutylene terepthalate (PBT) Fuse link handles, Clear Polycarbonate Insulation Shields, and Flexible Synthetic Nitrile Rubber Grommets.

Lucy Switchgear heavy duty cut-outs accept BS88 J type fuse links with 83mm or 92mm centres and are specified and approved by most UK DNO's.

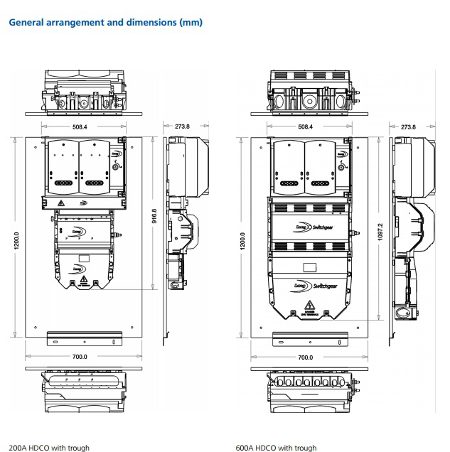

Pictured: Lucy Heavy Duty Cut-outs - 200A, 400A, 600A

Always striving to improve standards across the complete Lucy Switchgear range the following changes have been introduced.

Lucy Heavy Duty Cut-out - GF200 - now replaced by HDC200 - 200A TPNE Insulated Cut-out
Lucy Heavy Duty Cut-out - GF400 - now replaced by HDC400 - 400A TPNE Insulated Cut-out
Lucy Heavy Duty Cut-out - GF600 - now replaced by HDC600 - 600A TPNE Insulated Cut-out

Video: HDCO CTMC Construction

Integrated Metering & CT Chamber for Lucy Switchgear Cut Outs

Integrated Metering and CT Chamber affords secure, authorised levels of access and interface seamlessly with Lucy Switchgear HDC200, 400 and 600 range of Heavy Duty Cut Outs with the minimum of on-site preparation.

Emphasis has been given, without the need to disconnect outgoing supply cables, to rationalise the requirement of replace metering CT's in situ either as a result of a change in consumer supply demand or through a electricity fault.

Provision has been made to pre-wire the meter compartment  in accordance with customer requirements and to enable the meter to be mounted on the front door.

Lucy Heavy Duty Cut Outs : HDC 200/400/600

• Accepts BS 88 J type fuse links
• Cut out ratings 200A/300A/400A/600A
• Fuse carriers with 83mm or 92mm centres
• Moulded in off-white glass filled polyamide
• Cut out accepts up to 300sqmm aluminium or copper conductors

Lucy Heavy Duty Cut Outs : MC300

• Accepts BS 88 J Type fuse links
• Cut out maximum rating 300A
• Fuse carrier with 83mm centres
• Moulded in white glass filled polyester thermoset material
• All cut out contacts manufactured from solid brass section
• 3 types of cable termination up to 185sqmm



T&D offer Lucy House Service Cut Outs Both Single & Triple Phase 60A 80A 100A.





Lucy Heavy Duty Cut-outs - 200A, 400A, 600A

Lucy Heavy Duty Cutouts (HDCO) GF200 - 600A TPNE Insulated Cutout
