Lucy Heavy Duty Cutouts HDC600 - 600A TPNE Insulated Cut-out

Lucy Heavy Duty Cut-outs - 200A, 400A, 600A

Lucy HDC600 - 600A TPNE Insulated Cut-out



The Lucy Insulated Heavy Duty Cut-out - HDC600 (415V a.c.), has replaced the Lucy GF600 Cut-out. Specified and approved by most UK DNO's the Lucy HDC600 cut-out incorporates a redesigned trough to allow a choice of three cable entry positions, Conforms to BS 7657:1993, accepts fuses to BS 1361:1991 and also has an integral sealing wire facility.

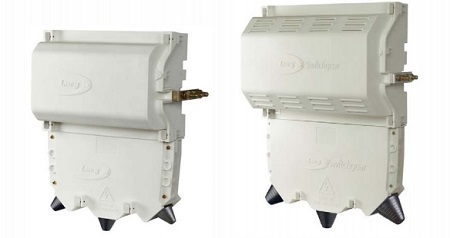

Pictured: Lucy Heavy Duty Cutouts HDC600 - 600A TPNE Insulated Cut-out

Lucy Switchgear Insulated Heavy Duty Cut-outs - HDC600 accept BS88 J type fuse links with 92mm centres and can accept a maximum 300sqmm cable. Incoming conductor termination is achieved using range taking mechanical shear off connectors or compression lugs, while outgoing cable terminations utilise range taking mechanical leader clamps or compression lugs.

Manufactured from glass reinforced polyamide 6, the Lucy HDC600 Heavy Duty Cut-out has tinned copper busbars, polybutylene terepthalate (PBT), fuse link handles, clear polycarbonate insulation shields and flexible synthetic nitrile rubber grommets.

Lucy Heavy Duty Cut Outs : HDC 200/400/600

• Accepts BS 88 J type fuse links
• Cut out ratings 200A/300A/400A/600A
• Fuse carriers with 83mm or 92mm centres
• Moulded in off-white glass filled polyamide
• Cut out accepts up to 300sqmm aluminium or copper conductors



T&D offer Lucy House Service Cut Outs Both Single & Triple Phase 60A 80A 100A.

Lucy Insulated Heavy Duty Cut-Out - HDC600

Lucy Insulated Heavy Duty Cutouts GF600
