Earth Rod Couplers, Driving Spikes & Studs

Earthing & Lightning Protection

Earth Rod Couplings, Couplers, Driving Spikes, Driving Studs

AN Wallis Earthing & Lightning Protection Distributors



Earth Rod Couplings/Couplers

High-strength copper couplings are used for joining earth rods together facilitating deep driving and ensure continual contact between the rods both during and after installation.

The copper coupling also protects the earth rod threads during installation with the driving head. All AN Wallis couplings are manufactured from a high copper content alloy ensuring excellent corrosion resistance.

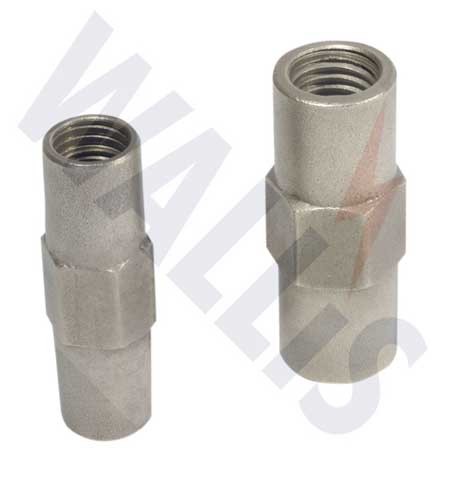

Pictured: Wallis Earth Rod Couplings

Wallis Earth Rod Couplers - Product Range

Part Number	Size	Dimensions	Unit Weight	Pack Quantity
ERBO 12	½"	70mm x 20mm	0.07kg	25
ERBO 16	⅝"	70mm x 20mm	0.09kg	25
ERBO 20	¾"	80mm x 24mm	0.14kg	25

Earth Rod Driving Spikes

Driving spikes enable solid copper earth rods to be driven into the ground.

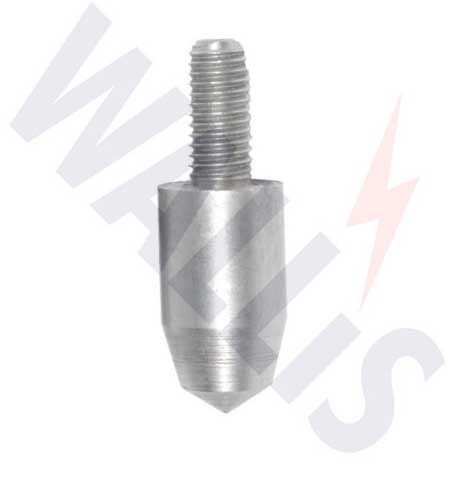

Pictured: Wallis Earth Rod Driving Spikes

Wallis Earth Rod Driving Spikes - Product Range

Earth Rod Part Number	Thread Size	Dimensions	Unit Weight	Pack Quantity
ERCS 16	M10	16mm x 42mm Depth x Length Length 1 - 20mm	0.03kg	25
ERCS 20	M10	20mm x 51mm Depth x Length Length 1 - 20mm	0.06kg	25
ERCS 25	M12	25mm x 60mm Depth x Length Length 1 - 25mm	0.10kg	25

Earth Rod Driving Studs/Heads

The driving head protects the internal thread and the top of the solid copper earth rod from damage when being driven into the ground.

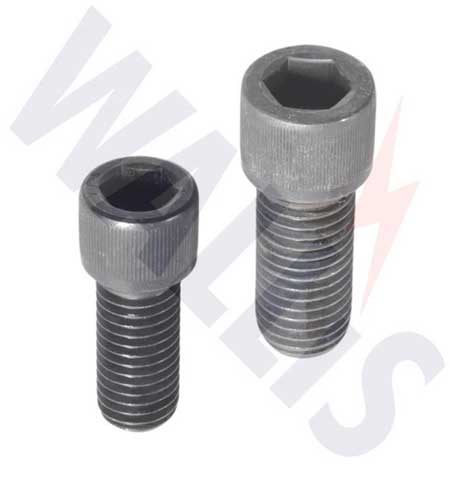

Pictured: Wallis Earth Rod Driving Heads

Wallis Earth Rod Driving Heads - Product Range

Part Number	Size	Dimensions	Unit Weight	Pack Quantity
ERBD 12	½"	50mm x 20mm	0.05kg	25
ERBD 16	⅝"	55mm x 22mm	0.08kg	25
ERBD 20	¾"	60mm x 25mm	0.13kg	25
