HV Cable Splices 11kV - 33kV

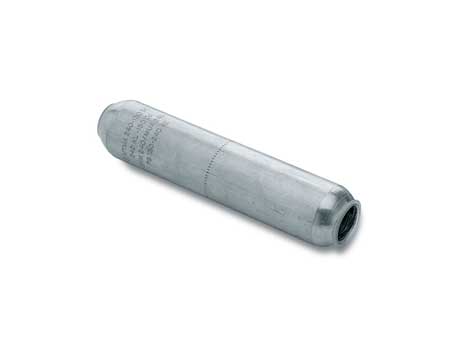

Cembre MTMA-GC Aluminium Cable Splices



Cembre MTMA-GC Aluminium Cable Splices are made from aluminium tube of a purity equal to or greater than 99.5%. The MTMA-GC through connectors are suitable to the junction of conductors AI-AI and AI-Cu.

Cembre MTMA-GC Aluminium Cable Splices Features

  • The internal surface is duly protected against the oxidation through a specific grease with a very high dropping point
  • The solid stop forms a barrier between the two conductors being joined - preventing migration of oils or greases during the connection of cables with different insulation
  • Cembre MTMA-GC cable splice packages include putty which is necessary to fill the indent cavities

Cembre Aluminium Through Connectors - MTMA-GC

Cembre Aluminium Splices CE Approved

Cembre MTMA-GC Aluminium Cable Splice Specifications
Cembre Reference Number Conductor Size Dimensions

Side A

Al

Side B

Al/Cu

ØA

ØB

L

Cembre

MTMA 16-10-GC

16sqmm 10sqmm 5.5mm 4.3mm 90.5mm

Cembre

MTMA 25-10-GC

25sqmm 10sqmm 6.5mm 4.3mm 90.5mm

Cembre

MTMA 25-16-GC

25sqmm 16sqmm 6.5mm 5.5mm 90.5mm

Cembre

MTMA 50-25-GC

50sqmm 25sqmm 9.0mm 6.5mm 106.5mm

Cembre

MTMA 50-35-GC

50sqmm 35sqmm 9.0mm 8.0mm 106.5mm

Cembre

MTMA 70-35-GC​

70sqmm 35sqmm 11.0mm 8.0mm 106.5mm

Cembre

MTMA 70-50-GC​

70​sqmm 50sqmm 11.0mm 9.0mm 106.5mm

Cembre

MTMA 95-50-GC​

95sqmm 50sqmm 12.5mm 9.0mm 109.4mm

Cembre

MTMA 95-70-GC​

95sqmm 70sqmm 12.5mm 11.0mm 106.5mm

Cembre

MTMA 120-70-GC​

120sqmm 70sqmm 13.7mm 11.0mm 133.0mm

Cembre

MTMA 120-95-GC​

120sqmm 95sqmm 13.7mm 12.5mm 133.0mm

Cembre

MTMA 150-70-GC​

150sqmm 70sqmm 15.5mm 11.0mm 133.0mm

Cembre

MTMA 150-95-GC​

150sqmm 95sqmm 15.5mm 12.5mm 134.4mm

Cembre

MTMA 150-120-GC​

150sqmm 120sqmm 15.5mm 13.7mm 133.0mm

Cembre

MTMA 185-120-GC​

185sqmm 120sqmm 17.0mm 13.7mm 143.5mm

Cembre

MTMA 185-150-GC​

185sqmm 150sqmm 17.0mm 15.5mm 143.5mm

Cembre

MTMA 240-150-GC​

240sqmm 150sqmm 19.5mm 15.5mm 143.5mm

Cembre

MTMA 240-185-GC​

240sqmm 185sqmm 19.5mm 17.0mm 143.5mm

Cembre

MTMA 300-95-GC​

300sqmm 95sqmm 22.5mm 12.5mm 144.5mm

Cembre

MTMA 300-150-GC​

300sqmm 150sqmm 22.5mm 15.5mm 144.5mm

Cembre

MTMA 300-185-GC​​

300sqmm 185sqmm 22.5mm 17.0mm 144.5mm

Cembre

MTMA 300-240-GC​​

300sqmm 240sqmm 22.5mm 19.5mm 144.5mm

Cembre

MTMA 400-240-GC​​​

400sqmm 240sqmm 26.0mm 19.5mm 218.0mm

Cembre

MTMA 400-300-GC​​​

400sqmm 300sqmm 26.0mm 23.3mm 218.0mm

Cembre

MTMA 500-300-GC​​​

500sqmm 300sqmm 29.1mm 23.3mm 218.5mm

Cembre

MTMA 500-400-GC​​​

500​sqmm 400sqmm 29.1mm 26.0mm 218.5​mm
