Cembre HV Aluminium Cable Splices 11-33kV
Cembre MTMA-GC High Voltage Aluminium Splices
Cembre MTMA70-GC 70sqmm

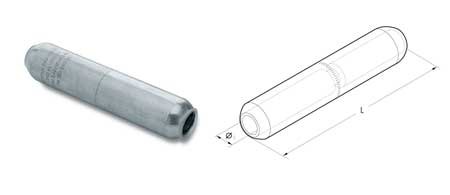

Cembre MTMA70-GC Aluminium Cable Splices are made from aluminium tube of a purity equal to or greater than 99.5% and suitable for 70sqmm, 11kV to 33kV cables.
Cembre Reference | Conductor Size | Dimensions | |||
Side A AI | Side B AI/Cu | ØA | ØB | L | |
Cembre MTMA70-35-GC | 70sqmm | 35sqmm | 11mm | 8.0mm | 106.5mm |
Cembre MTMA70-50-GC | 70sqmm | 50sqmm | 11mm | 9.0mm | 106.5mm |
HV (11kV-33kV) Aluminium Cable Splice 70sqmm - Cembre MTMA70-GC
