Roxtec RS Transit Frame

Roxtec RS seals are round seals for single cable or pipe entries in metal sleeves or core drilled holes. The two halves have removable layers.

Thanks to this Roxtec technology called Multidiameter, they are adjustable to fit a wide range of different cable or pipe diameters.

The split construction makes it easy to install around existing cables or pipes, available with or without cores. Attachment is by expansion within the hole, available in Acid Proof Stainless Steel.

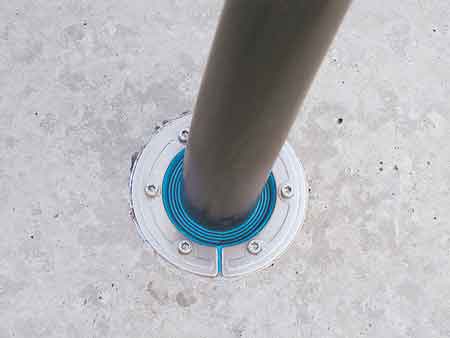

Pictured: Roxtec RS Cable Transit Frame

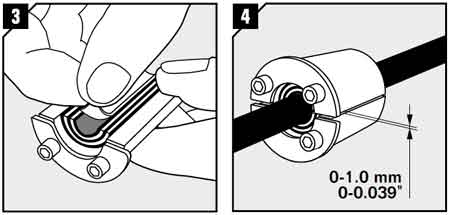

Pictured : Installation of Roxtec Cable Transit Frame RS Type

3. Adapt the cable seal to the cable/pipe by peeling off layers from the halves until you reach the gap seen in Pic.4. The halves may not differ by more than one layer.

4. Try to achieve a 0.1-1.0mm gap between the two halves when held against the cable or pipe.
